Technical Specification
Scanning range: 2.5 mm ~9999 mm
Scanning resolution: 0.1mm (2.5mm ~100mm); 1mm (100 mm ~5000mm)
Gain range: 0dB ~110 dB
D-delay: -20µs~+3400µs
P-delay: 0µs~99.99µs， resolution 0.01µs
Sound speed: 1000 m/s~9999m/s
Bandwidth: 0.2MHz~15MHz
（ Low0.2~1 Mid.0.5~4 High3~15)
Vertical linearity accuracy: ≤3%
Horizontal linearity accuracy: ≤0.2%
Dynamic range: ≥32dB
Rectification: Positive half wave, negative wave,
full wave, and RF
Sensitivity leavings: ≥60dB
Test mode: Pulse-echo, dual and through transmission
Pulser: Spike excitation pulser
Damping: 50ohms, 150ohms and 400ohms
Reject: Linear, 0-80% of full screen, variable in steps of 1%
Unit: Metric/inch
Interface: RS232 / USB
Printer: EPSOn ink-jet printers
AC requirements: 85-264V AC/1.0A,47-63Hz
Temperature: -10℃~40℃
Humidity: 20%~90%RH
Power supply: Li battery4×3.6V 4000mAh
Charging time: 4~5hours
Dimension (mm): 243×173×70
Weight (g): 1470
Standard Delivery

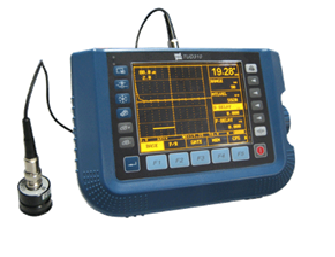

●Main unit
●Power adaptor
●neck strap
●2 x Cable for probe
●Straight probe(2.5MHz,Ø20)
●Angle probe(5MHz,8×9K2)
●Couplant
●Flash disk
●Screw driver
●TIME certificate
●Warranty card
●Instruction manual
