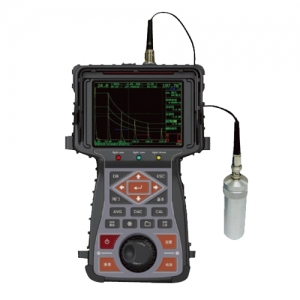

TIME TUD500 Ultrasonic Flaw Detector (2,5 mm ~ 9999 mm)

Technical Specification

Scanning range: 2.5 mm ~9999 mm

Scanning Resolution: 0.1mm (2.5mm ~100mm); 1mm (100 mm ~5000mm)

Gain range: 0dB ~110 dB

D-delay: -20µs~+3400µs

P-delay: 0.000~750.000

Sound speed: 600 m/s~16000m/s

Bandwidth: 0.1MHz~15MHz

Vertical linearity Accuracy: ≤2%

Horizontal linearity accuracy: ≤0.1%

Dynamic range: 100dB

Rectification: Positive half wave, negative wave, full wave, and RF

Sensitivity leavings: ≥62dB

Test mode: Pulse-echo, dual and through transmission

Pulser: Square pulse

Damping: 50ohms, 100ohms ,200ohms,500 ohms

Reject: Linear, 0-80% of full screen

Unit: Metric/inch

Interface: RS232 / USB

Printer: EPSOn ink-jet printers

AC requirements

Input: 100-240~50/60Hz

Output: 9V DC/3 A~4A

Temperature: -10℃~40℃

Humidity: 20%~90%RH

Power: 2×3.7V 5000mAh

Charging time: 8h

Dimension (mm): 300×180×57

Weight (g): 2000

 Standard delivery:

●Main unit

●2 x Li battery

●Power adapter (3A/9V)

●LEMO-Q9 probe connecting cable

●LEMO-Q6 Probe connecting cable

●neck strap

●Wrist strap

●Hood

●Straight beam probe

●Angle beam probe

●Couplant

●TIME certificate

●Warranty card

●Instruction manual
