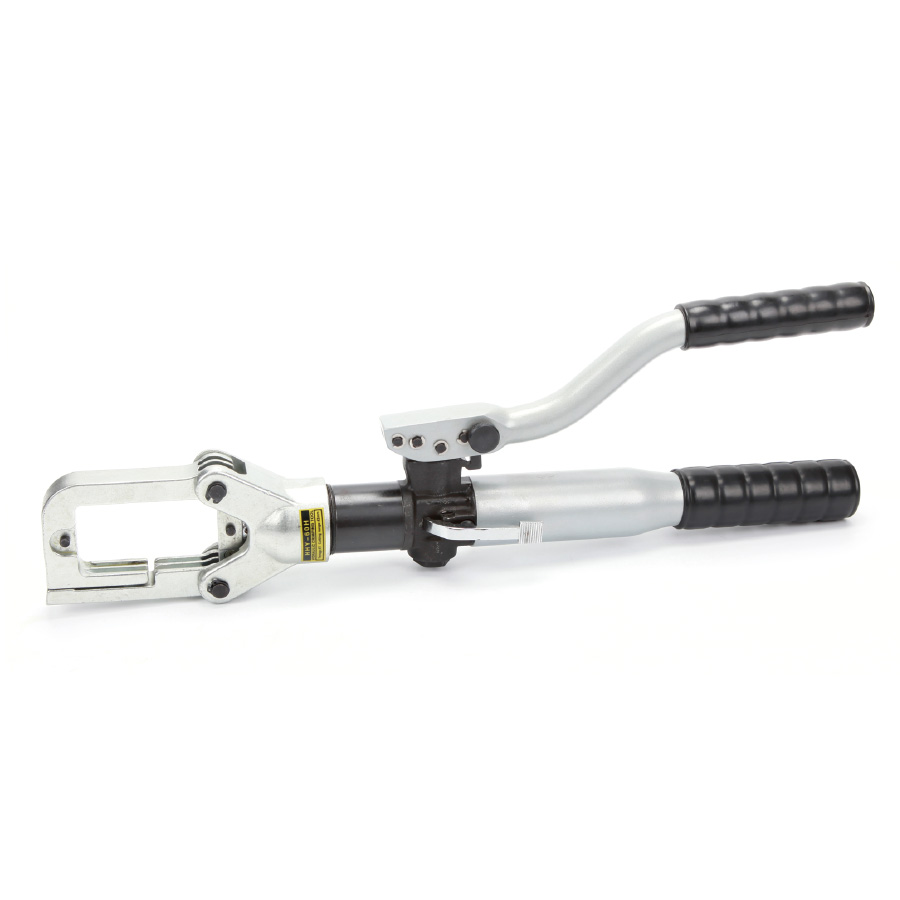

Hydraulic Ram Output: 6.5 Ton
Ram Stroke: 42 mm
Cutting Range (mm): Ø40 (Cu/Al and armoured cable)
Crimping Range (mm²): 16–300
Punching Range (mm): Ø22.5–Ø61.5
G.W. (kg): 14.5
Packing Size (mm): 610 × 210 × 110
Accessories
Crimping dies (mm²): 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300
Punching dies (mm): 22, 27, 34, 43, 49, 60
Blades: 1 set
Crimping adapter: 1 pc
Punching adapter: 1 pc
Draw stud M20×1.5: 1 pc
Draw stud M10×1: 1 pc
Spacer: 1 pc
Sealing ring of cylinder: 1 set
Sealing ring of safety valve: 1 set
Characteristics:
Aluminum pump lever and housing result in low weight.
One universal head for crimping, cutting and punching.
Built-in safety valve
●Universal head, flip-top style, rotatable.
●Light weight due to high quality aluminum housing.
●Thanks to the automatic retraction function, poor crimps are avoided, more safety and shorter intervals between crimping operations.
●Manual release in case of need.
●The rotatable head permits to work in tight locations.
●Faster operation with less force thanks to the 2-stage hydraulic system.
●Closed work head, flip top style, rotatable.
●Sturdy steel storage box.
