Hydraulic Ram Output: 11 Ton
Ram Stroke: 42 mm
Battery Capacity: 150 crimping cycles
Crimping Range: 16 – 400 mm²
Crimping Time: 6 – 18 s (depending on cable size)
Battery: 18 V / 4.0 Ah Li-ion
Charging Time: 2 hours
Accessories:
Crimping Dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm²
Qty of Battery: 2 pcs
Charger: 1 pc
Seals: 1 set
Weight: 17.3 kg
Packing Size: 585 × 500 × 170 mm
Characteristics:

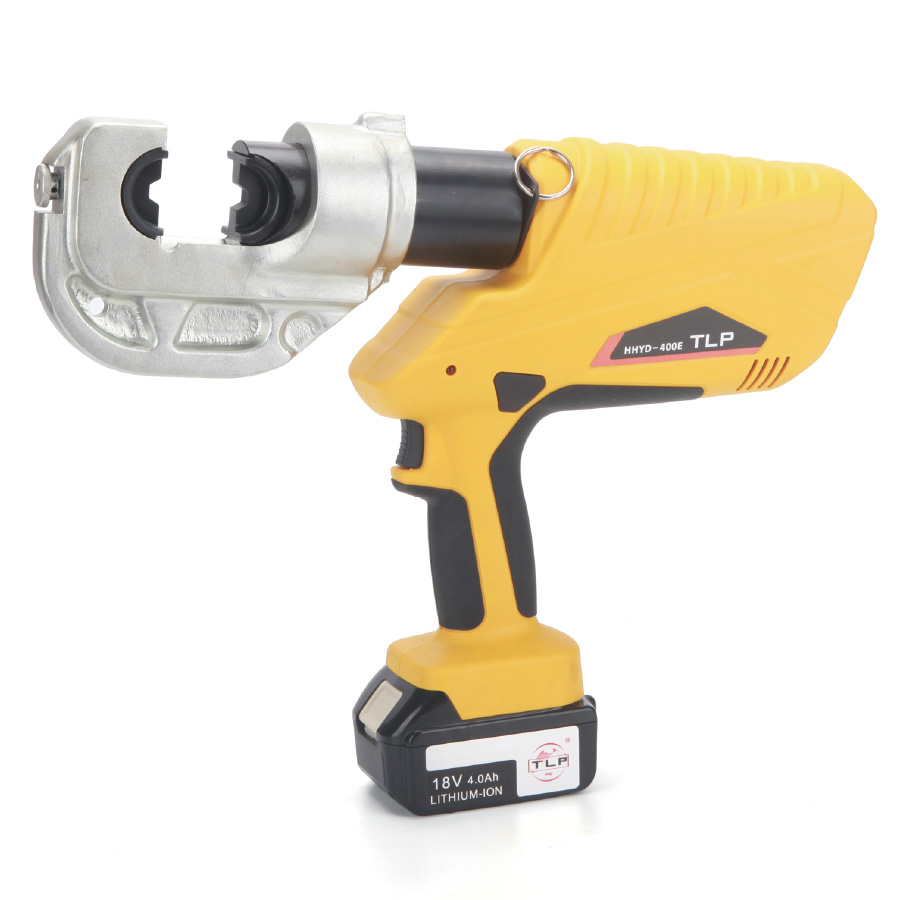

■ C-head with large 42 mm opening width
■ Balanced centre of gravity for easy handling
■ Very large crimping range up to 400 mm2
■ Wide crimping
Characteristics:
●Open C-crimping head with 42 mm width, rotating 330°.
●Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time.
●10000+ cycle service life.
●Ram retracts to original position automatically when operation is complete.
●Manual retraction in case of need.
●Audible buzzer and red LED light in case of error.
●Quick motor stop for higher user safety.
●Powerful 18V Li-ion battery with low battery warning.
●Ergonomic 2-component grip area and balanced center of gravity.
●Sturdy plastic storage box.
