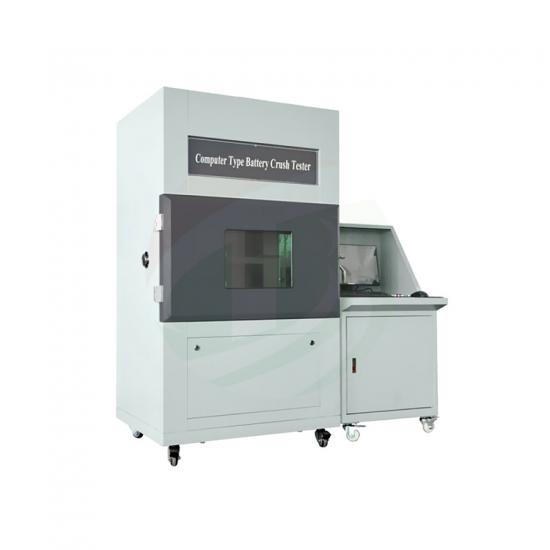

TOB TOB-6047-2T Lithium Ion Battery Nail Penetration Crush Tester (1~20KN)
Manufacturer: TOB Model: TOB-6047-2T Origin: China Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
Force Range: 1~20KN
Tester Architecture: Free Stand & Vertical extrusion
Power Input: 220V 50 Hz
Force Deviation: ≤±1% Full-scale Range
Unit Shift: Kgf,lbf,n,kn,kpa,mpa
Crushing Velocity: 1~ 900mm/min(controllable)
Crushing Velocity Accuracy: ≤±0.5% Full-scale Range
Crushing Travel: 300mm
Crushing Motion Accuracy: ≤±1% Full-scale Range
Available Battery Size: W400 X D400 X H300mm
Voltage Resolution: 1mv
Test Terms: Force, Displacement (Deformation), Voltage, one from three projects or all three projects
Crushing Time Maintaining: 0~99 Hours 99 Minutes & 99 seconds, time can be controllable to control the deformation and stop if test fulfilled.
Driving Method: Servo Motor Driving
Nail Penetration Speed: 1 ~ 40mm/s(Controllable)
Tungsten steel needle
Φ3X100MM10 pieces
Φ6X100MM 10 pieces
Φ4X100MM 10 pieces
