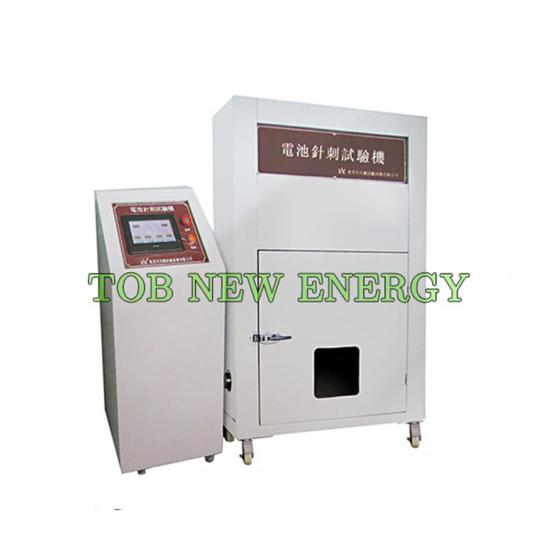

TOB TOB-BNT-9002 Battery Nail Test
Manufacturer: TOB Model: TOB-BNT-9002 Origin: China Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
Dimension: 900*1460*500mm
Weight: 150kg
Controller dimension: 330*1040*330mm
View window dimension: 200*200mm, 10mm thickness Double explosion-proof glass
Source voltage: AC 110V/220V, 50HZ
Needling mode: Pneumatic
Needing force: 150-200kg，±1% accuracy
Max testing size: 200*200*200, adjustable
High temperature resistant steel needle: φ3mm and φ8mm
Needling height: 150mm
Needling speed
10-40mm/s, adjustable,
Through the perpendicular to the battery plate direction pierce the battery,
stop (1min~6hour) automatically from a battery pull, easy disassembly.
Anti explosion case: Bottom is provided with four universal wheels, and can move freely
Exhaust fan port: 15mm diameter
