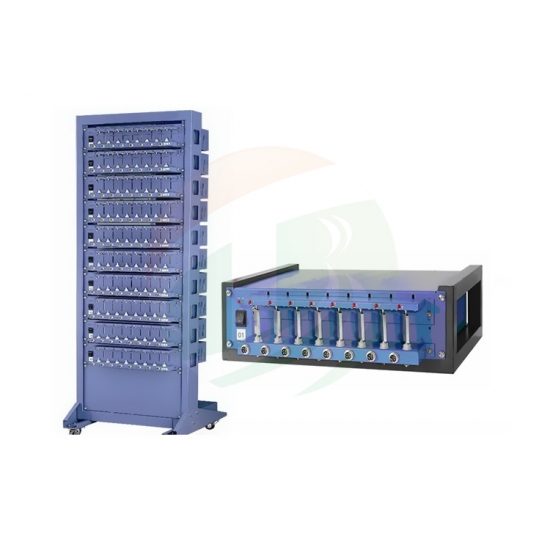

TOB TOB-BTS-5V2A High Precision Battery Testing Machine (1mA~1000A, 2V~500V)
Manufacturer: TOB Model: TOB-BTS-5V2A Origin: China Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
Input Power: 220 V ±10% / 50 Hz
Current output range: ±2200mA
Voltage measuring range: 5V
Input impedance: ≥10MΩ
Power: 100W
Current measurement accuracy: ±（0.2% of reading + 0.1% of range）
Voltage Measurement Accuracy: ±（0.1% of reading + 0.05% of range
Current / voltage / time resolution: 0.1mA /0.1mV/s
Cyclic measurement range: 1-9999times
Data recording condition: timeΔt (1 ~900s)； VoltageΔV (5-5000mV)； Current ΔI (1.5-2200mA)
Connector: RJ45 network
The number of channels per Unit: 8 point
Volume: 197D x 245W x 60H (unit：mm)
Weight: About 10kg
