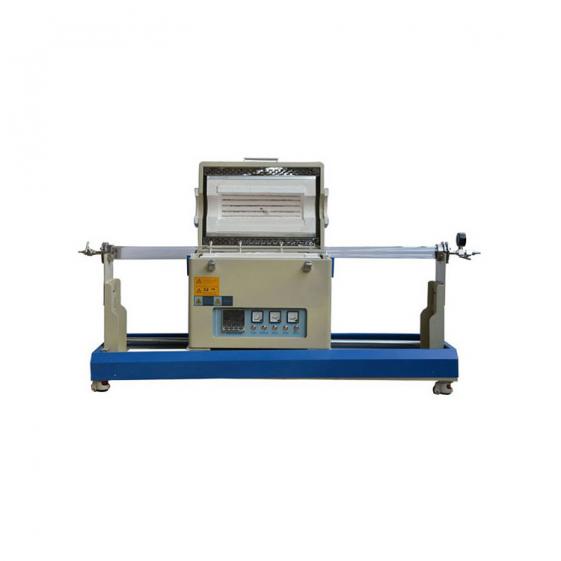

TOB TOB-DSP-1200℃-SZII Single-Temperature Zone Rapid Heating Furnace (1200℃,3.5KW)

Power: 3.5  KW

Furnace tube size(mm): Dia 80(OD)X1460

Dimension: 1500X490X600

Power supply voltage: 220V

Phase number: Single-phase

Temperature control mode

1.Yudian temperature control: 30 sections can only use PID temperature regulation.

2.FP93 temperature control (from Japan)

Control accuracy: +/- 1 ℃

Trigger: Phase-shift trigger

SCR: 106 / 16E Germany Simon Kang

Max temperature: 1200 ° C

Rated temperature: 1100 ℃

Heating rate: ≤30 ℃/ Min (Available upon request modification)

Control accuracy: +/- 1 ℃

Recommended heating rate: ≤100℃/ Min

Heating length: 400mm

Thermostatic length: 150mm

Thermocouple Type: K type

Surrounding surface temperature: ≤45℃

Security System: overcurrent protection
