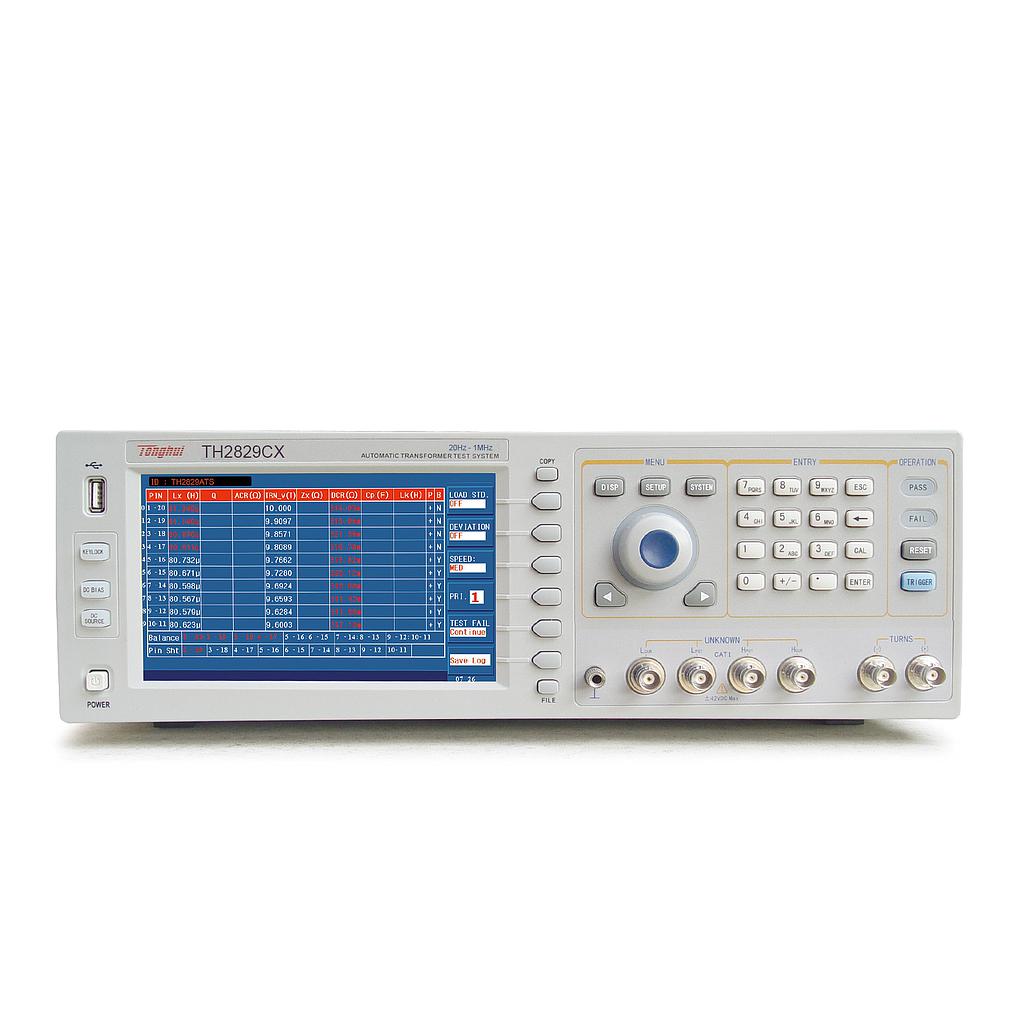

Test Pin(PIN): 20
Test Frequency: 20Hz~1MHz
Display: 800×RGB×480 7 inch TFT LCD display
LCR Function: option
Transformer test parameters: Turn Ratio, Turns, Phase, L, C, Lk, Q, ACR, DCR, Balance, Pin Short, Diode P/N
LCR Test Parameters: |Z|,Y|, C, L, X, B, R, G, D, Q, θ, DCR, Turn-Ratio, Phase, Lk
Basic Test Accuracy:
- LCRZ 0.05%
- DCR、Turn Ratio 0.1%
Signal Source Output Impedance: 10Ω、30Ω、50Ω、100Ω
Test Speed (ms/times): 13ms, 90 ms, 370 ms
AC Signal Level: 5mVrms — 2Vrms(transformer test, can be customized to 10Vrms), 5mVrms — 10Vrms(LCR function)；50μArms — 100mArms
DC Bias Voltage Source: 0V — ± 10V；0mA — ± 100mA
DC Bias Current Source: 0 — ±1A option(option TH2901) / 0 — ±2A option(option TH2902)
DC Constant Current Source: 0mA – ±120mA for diode forward characteristic test
Diode Test:
-Forward test voltage: 0 — 9.9999 V
- Reverse test current: 0 — 99.999 mA
Storage:
- Internal: 100 sets of configuration file;
- U disk: 500 sets of configuration files, CSV format test data, GIF format images
