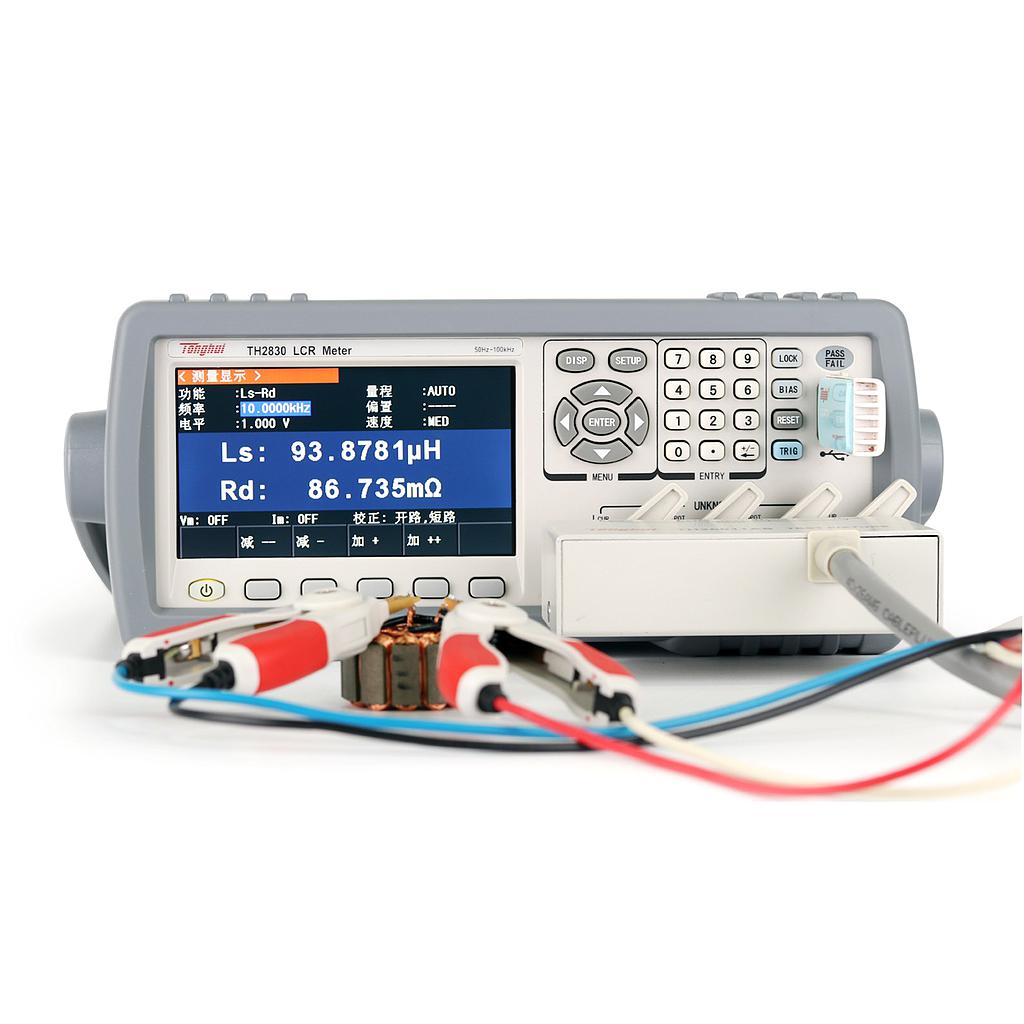

Basic Measurement Accuracy:
- LCRZ: 0.05%
- DCR: 0.1%
- Calibration condition: Warm up time: ≥ 30 minutes ; Environment temperature: 23±5ºC
Signal level: 1Vrms ; Corretion: after OPEN, SHORT
Testing cable length: 0 m
Test signal frequency: 50Hz-100kHz , 34points
50Hz, 60Hz, 75Hz, 100Hz, 120Hz, 150Hz, 200Hz, 250Hz, 300Hz, 400Hz, 500Hz, 600Hz, 750Hz, 1kHz, 1.2kHz, 1.5kHz, 2kHz, 2.5kHz, 3kHz, 4kHz, 5kHz, 6kHz, 7.5kHz, 10kHz, 12kHz, 15kHz, 20kHz, 25kHz, 30kHz, 40kHz, 50kHz, 60kHz, 75kHz, 100kHz
Signal source output impedance: Selectable 30Ω, 100Ω, ±1% at1kHz
Test parameters of LCR: |Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR
DCR display range: 0.00001 Ω – 99.9999 MΩ
Display range of LCR parameter:
- |Z|, R, X: 0.00001Ω — 99.9999MΩ
- |Y|, G, B: 0.00001μs — 99.9999s
- C: 0.00001pF — 9.99999F
- L: 0.00001μH — 99.9999kH
- D: 0.00001 — 9.99999
- Q: 0.00001 — 99999.9
- θ(DEG): -179.999º — 179.999º
- θ(RAD): -3.14159 — 3.14159
- Δ%: -999.999% — 999.999%
Measurement time (≥10 kHz):
- Fast: 75 meas /sec (13ms)
- Medium: 11 meas /sec (90ms)
- Slow: 2.7 meas /sec (370ms)
Rack mount (mm): 215(W) x 88(H) x 335(D)
Dimension (mm): 235(W) x 105(H) x360(D)
Net weight: 3.6 kg
