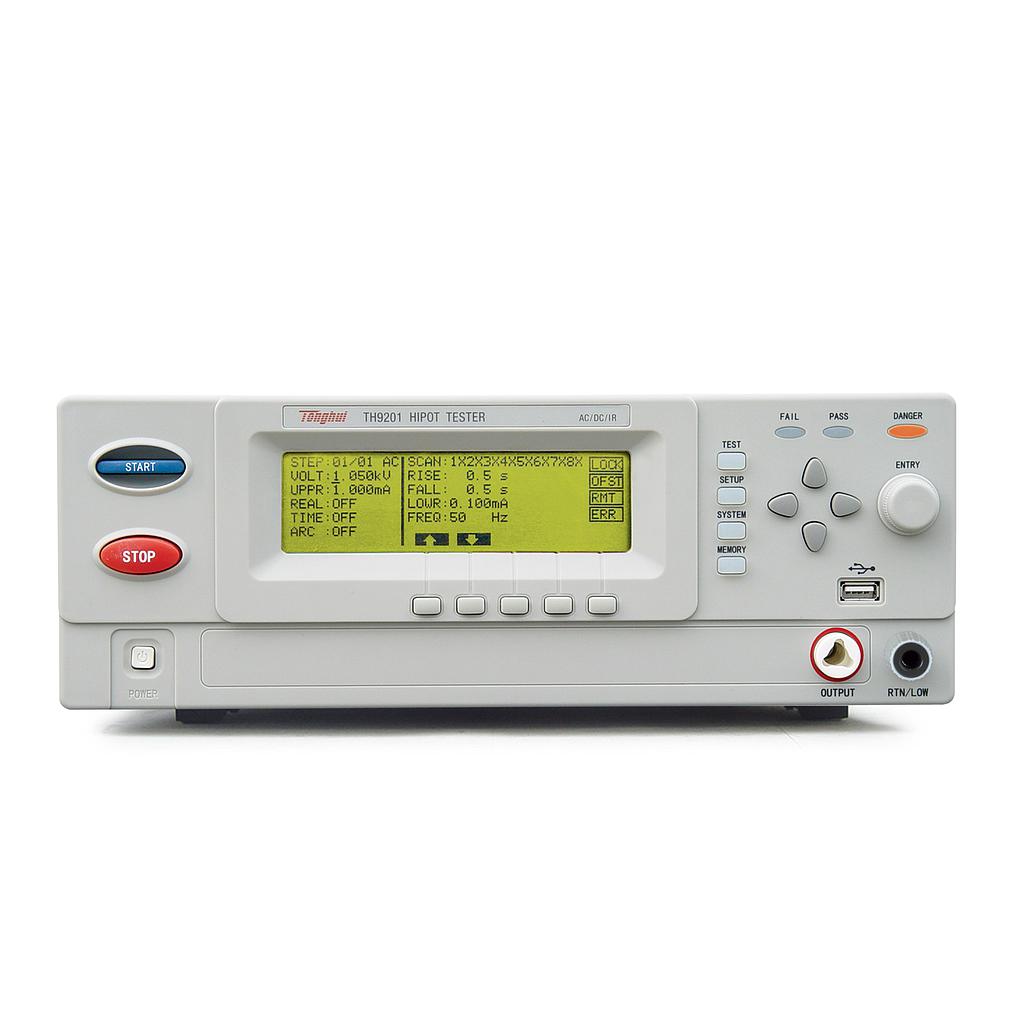

Withstanding voltage test
Output Voltage:
- AC: 0.05kV—5kV ±(1.0% of reading+5 digit) (50、60Hz optional)
- DC: 0.05kV—6kV ±(1.0% of reading+5 digit)
- Voltage Adjustment Rate≤(1.0% +10V)（rated power）
Current Test Range:
- AC: 0.1mA - 30mA
- DC: 0.01mA - 10mA
- Test Accuracy: ±(1.0% of reading+5 digit)
- Discharge Function:Discharge after test ends（DCW）
Insulation Resistance Test
Output Voltage:0.05kV - 1kV ±(1.5% of reading+5V)
Resistance Test Tange:0.1MΩ -10GΩ，(Current range within 10nA-10mA)
Resistance Test Accuracy:
500V-1000V: 1MΩ - 1GΩ ±(5% of reading +5 digit); 1GΩ - 10GΩ ±(10% of reading +5 digit)
50V-500V: 0.1MΩ - 1GΩ ±(10% of reading +5 digit)
Discharge Function: Discharge after test ends
Arc Detection:
Measurement Range:
- AC: 1mA - 15mA
- DC: 1mA - 10mA
General Specification
Memory: 50groups, 100 steps per group, totally 500 steps
Voltage Rise-time: 0.1s - 999s
Voltage Fall-time: 0.1s - 999s
Voltage Wait-time: 0.1s - 99.9s (only for DC)
Test Time Setting: 0.3s - 999s
Interface:
- Standard: RS232，USB,HANDLER，REMOTE I/O ，SCAN
- Options: GPIB
