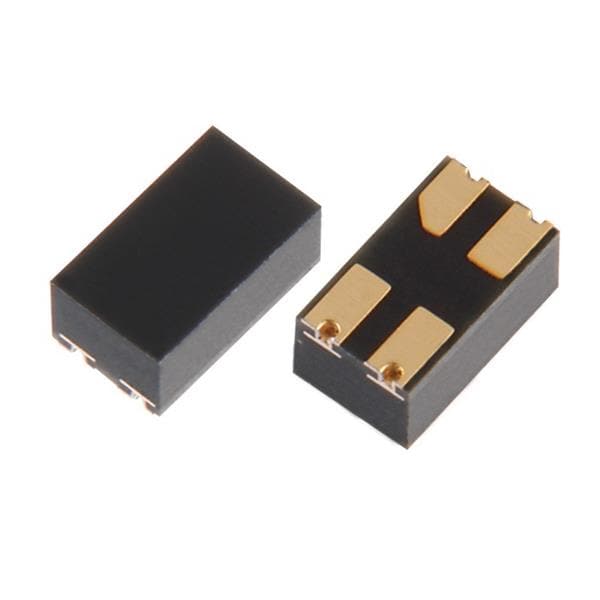

Toshiba TLP3412(TP,F Solid State Relays Photorelay Voff=60V Ion=0.4A Ron=1.5Ohm
Manufacturer: Toshiba Model: TLP3412(TP,F - Contact
Width: 1.45 mm
Height: 1.3 mm
Length: 2.45 mm
Output Type: Photo MOSFET
Unit Weight: 10 mg
Contact Form: SPST (1 Form A)
Input Current: 30 mA
Mounting Style: PCB Mount
Termination Style: SMD/SMT
Moisture Sensitive: Yes
Relay Contact Form: 1 Form A (SPST-NO)
Load Current Rating: 400 mA
Load Voltage Rating: 60 VAC, 60 VDC
Control Voltage Range: 1.1 VDC to 1.4 VDC
Maximum Operating Temperature: + 110 C
Minimum Operating Temperature: - 40 C
Input to Output Isolation Method: Optocoupler
