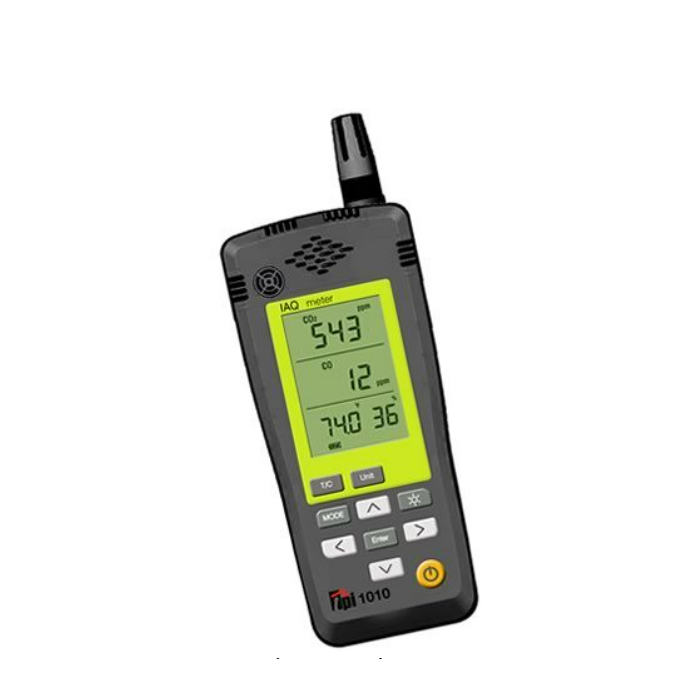

TPI 1010A Indoor Air Quality Meter

CO2

Range: 0 to 5000ppm

Accuracy: 50°F~104°F: ±5% of rdg+75ppm

<50°F, >104°F: ±10% of rdg+75ppm

Temperature

Range: -5°F to 140°F; -20°C to 60°C

Accuracy: ±2°F, ±1°C

Dew Point Temperature

Range: -47°F to 135°F; -44°C to 57°C

Accuracy: Calculation ±1°C

Wet Bulb Temperature

Range: 3°F to 135°F; -16°C to 57°C

Accuracy: Calculation

Relative Humidity

Range: 5% to 95%

Accuracy: ±2°F; ±1°C

% Outside Air

Range: 0 to 100%

Accuracy: Calculation

CO

Range: 0 to 500ppm

Accuracy: ±3ppm or ±5% of rdg whichever is greater

Data Logging: Up to 4,000 samples 1 sec to 23hr 59min interval

Display Type: 3 line with annunciators and backlight

CO2 Alarm: Audible and visual, selectable level (factory default 30ppm)

Operating Temperature & Humidity

CO and CO2: 14°F to 122°F (-10°C to 50°C)

All Other Function: -4°F to 140°F (-20°C to 60°C)

Humidity: 15 ~ 95% non-condensing

Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Power supply

3 AA batteries ( 4.5V)

AC/DC adapter 5Vout (Center positive)

Battery Life: 40 hours typical without backlight
