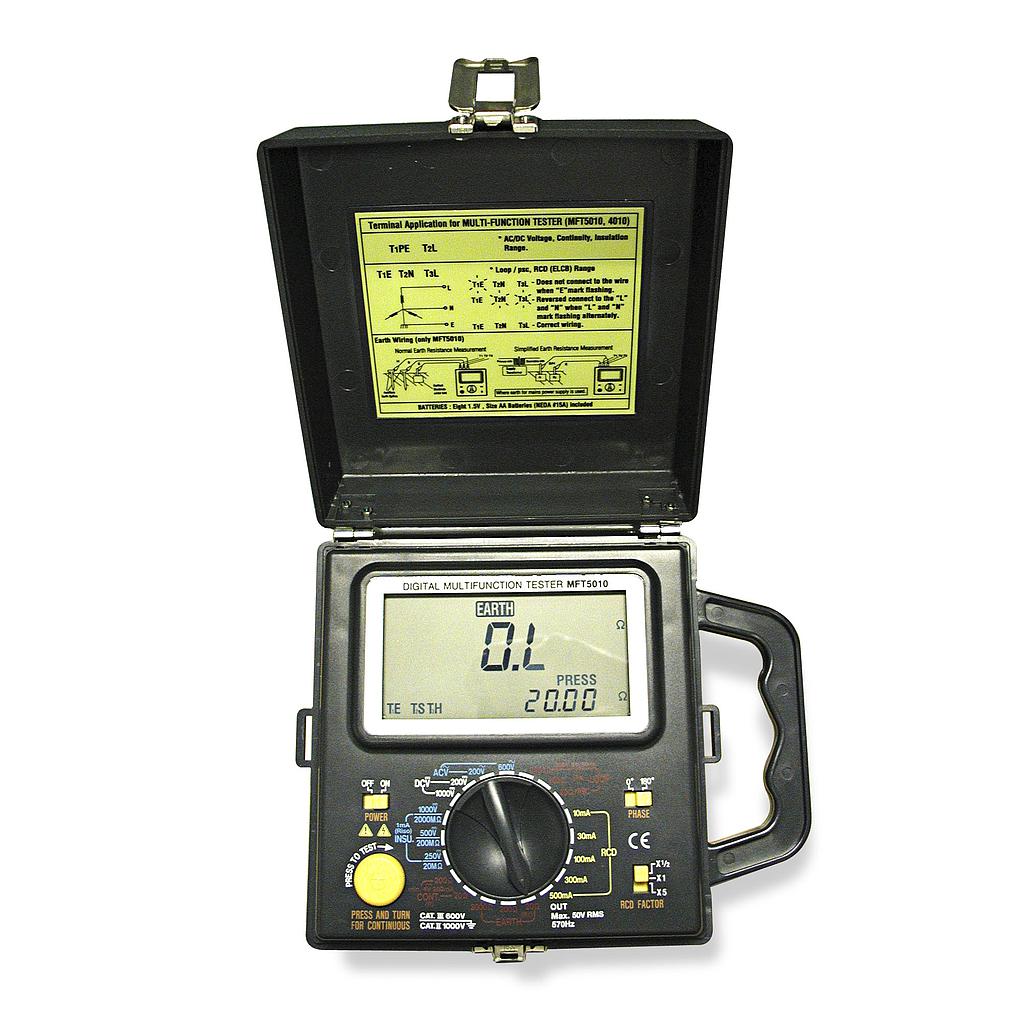

TPI MFT5010 Digital Multifunction Tester

Continuity Resistance Ranges

Measuring Ranges: 20.00Ω / 200.0Ω

Accuracy: ±3% rdg. ±3dgt. ±0.1Ω

Insulation Resistance Range

Test Voltage: 250V/500V/1000V

Measuring Ranges: 20.00MΩ/200.0MΩ/2000MΩ

Loop Impedence Range

Rated Voltage: 230V AC ±10%

AC Voltage Measuring Range: MAX 253V AC

PSC

Rated Voltage: 230V AC ±10%

AC Voltage Measuring Range: MAX 253V AC

RCD Ranges

Rated Voltage: 230V AC ±10%

AC Voltage Measuring Range: MAX 253V AC

AC Voltage Ranges

Measuring Ranges: 200V/600V

Input Impedance: Approx. 10MΩ

Input Frequency: 45Hz - 450Hz

Accuracy: ±3% rdg. ±5dgt.

DC Voltage Ranges

Measuring Ranges: 200V/1000V

Input Impedance: Approx. 10MΩ

Accuracy: ±3% rdg. ±3dgt.

Earth Resistance Ranges

Measuring Ranges: 20Ω/200Ω/2000Ω

Operating Temperature: 0°C - 40°C

Storage Temperature; -10° - 50°C

Operating Humidity: 70% max.

Storage Humidity: 80% max.

Dimensions: 170 x 210 x 90mm

Power Supply: 8 x 1.5V Battery (AA or R-6)

Battery Life: 100 Hours
