Measuring principle: F probe = magnetic induction / N probe = eddy currents
Measuring range: 0-1300μm / 0 to 51.2 mils
Accuracy: ±3% + 2μm (0.078 mils)
Resolution: 0μm – 999μm (1μm) / 0 mils – 39.39 mils (0.01 mils)
1000μm – 1300μm (0.01mm) / 39.4 mils – 51.2 mils (0.1 mils)
Calibration: One point to four points calibration, zero point calibration, basic
Statistics:No. of readings, mean, minimum, maximum and standard deviation
Units: μm, mm and mils
Alarm: User can set high/low alarm limit, alarm icon displayed on LCD when over limit
Min. curvature radius convex: 1.5mm
Min. curvature radius concave: 25mm
Min. measuring area: Diameter 6mm
Min. thickness of substrate: Fe - 0.5mm (0.02”) / NFe – 0.3mm (0.012”)
Max. Measuring rate: 2 readings p/s
Computer interface: download data via USB
Power supply: 2 x 1.5V AAA battery
Operation environment: Temp: 0 to 40°C (32 to 104°F) / Humidity: 20% to 90% Storage environment: Temp: -20 to 70°C (-4 to 158°F)
Size: 110mm x 53mm x 24mm (4.33”x 2.09”x 0.94”)
Case material: ABS 92g (3.24oz)
Scope of supply:

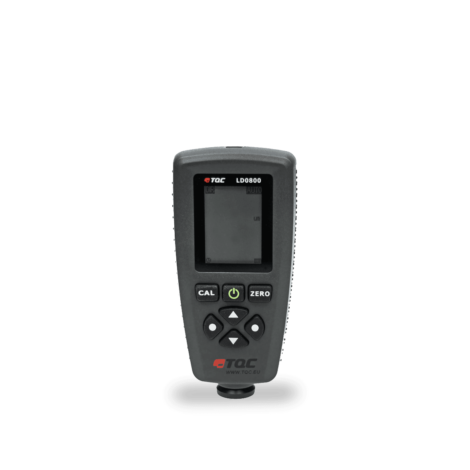

• TQC Fe/NFe Coating thickness gauge
• USB cable
• Software
• 2 x batteries 1.5V AAA
• Foil set
• NFe zero plate
• Fe zero plate
• Carrying Case
