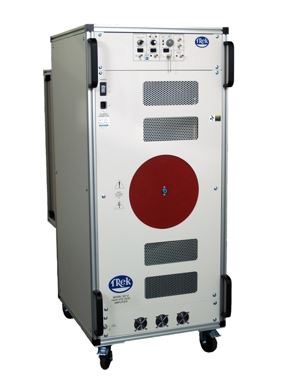

Trek 50/12 High-Voltage Power Amplifier
Manufacturer: TREK Model: 50/12 - Contact
Output Voltage Range: 0 to ±50 kV DC or peak AC
Output Current Range: 0 to ±12 mA DC or peak AC
Input Voltage Range: 0 to ±10 V DC or peak AC
Input Impedance: 25 kΩ, nominal (inverting/differential option
50 kΩ nominal)
DC Voltage Gain: 5000 V/V
DC Voltage Gain Accuracy
Better than 0.1% of full scale
Offset Voltage: Less than ±5 V
Output Noise: Less than 10 V rms*
Slew Rate (10% to 90%, typical): Greater than 350 V/µs
Small Signal Bandwidth (-3dB): DC to greater than 20 kHz
Large Signal Bandwidth (2% distortion) :DC to greater than 1.4 kHz
Dimensions: 1473.5 mm H x 628.7 mm W 948.4 mm D
Weight: 125-136 kg
