Output Voltage Range: 0 to +1kV peak AC, adjustable.
Max Source Current: Rise Time: Less than 5A peak AC, 5mA DC
Rise Time (10 to 90%, 10pF load): Less than 10ns
Fall Time (10 to 90%,10pF load): Less than 100µs
Maximum Pulse Repetition Rate : 1 kHz
Pulse Width Range: 20 µs to 350 µs
Dimensions: 104mm H x 232mm W x 217mm D
Weight: 1.36kg

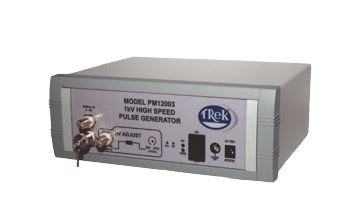

The Model PM12003 is a High-Voltage Pulse Generator designed to provide precise control of output voltages in the range of 0 to +1 kV AC with an output current range of 0 to 5 A peak AC or 5 mA DC.
The Model PM12003 features a solid-state output topology for fast rise times.
