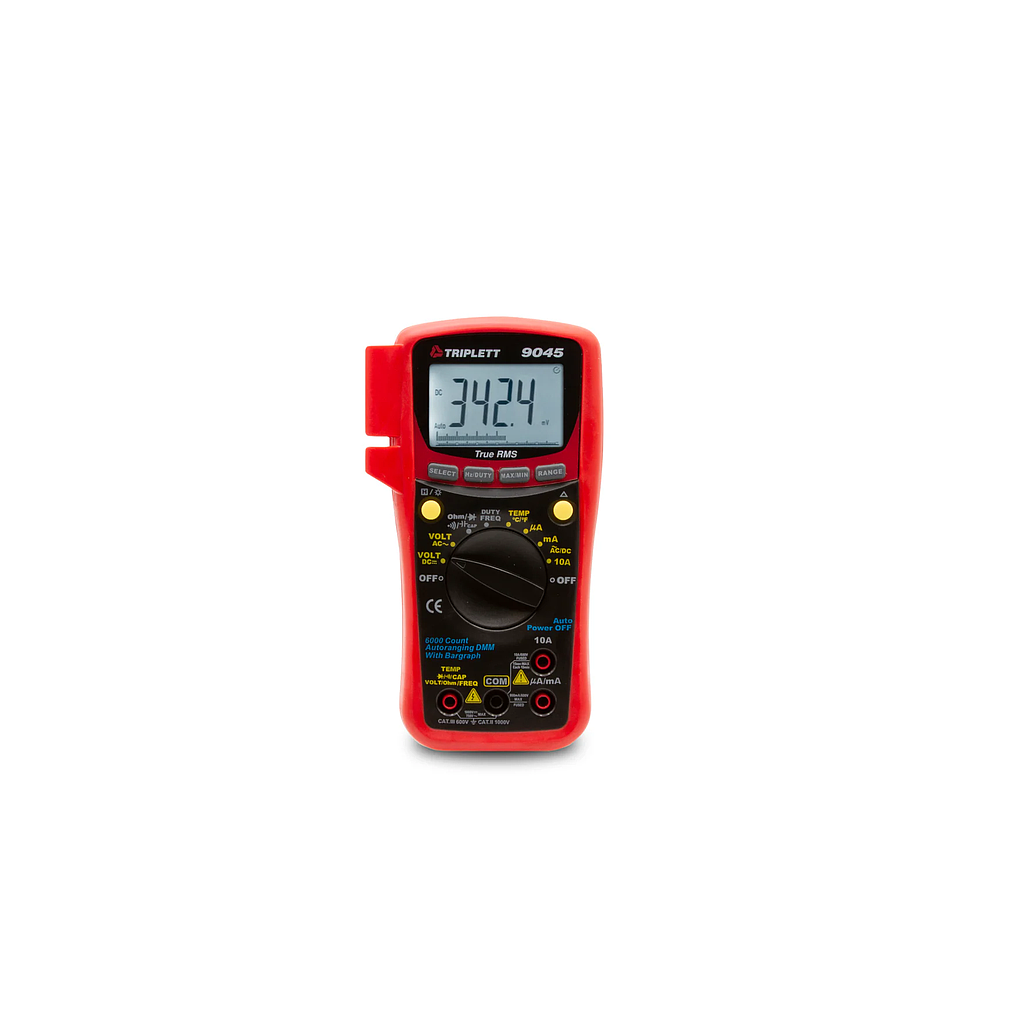

Triplett 9045 Digital Multimeter (750VAC, 1000VDC, 10AAC/DC, True RMS)
Manufacturer: Triplett Model: 9045 P/N: 614395001209 - Contact
Auto/Manual Ranging: Autoranging
True RMS/Averaging: True RMS
Basic Accuracy: ±0.8%
AC Voltage: 1mV to 750V
DC Voltage: 0.1mV to 1000V
AC Current: 0.1µA to 10A
DC Current: 0.1µA to 10A
Resistance: 0.1Ω to 60MΩ
Temperature: -4 to 1400°F (-20 to 750°C)
Capacitance: 10nF to 4000µF
Frequency: 0.001Hz to 10MHz
Duty Cycle: 0.1 to 99.9%
Analog Bargraph: 61 segments
Safety Category: CAT III-600V
Dimensions: 7 x 3.7 x 1.5" (178 x 94 x 38mm)
Weight: 11oz (312g)
