Parameter Value
Voltage indication: 12–690 VDC; 12–400 VAC
Voltage detection:Automatic
Display tolerance: -30 % to 0 % of the displayed value
Polarity indicator: + / - / ~
Display delay: < 0.1 s LED
Frequency range: 50 / 60 Hz
Power consumption: approx. 2.1 W for 600 V
Current consumption: ls < 0.2 A
Maximum permissible measuring time for voltages duty cycle: = 30 s
Rest period between voltage detections: 10 minutes
LED display from: > 8 V AC/DC
Operating temperature: -10 °C to +55 °C
Relative humidity: 85 % max.
Overvoltage category: CAT III – 600 V
Type of protection: IP64
Dimensions (length x width x height): 240 x 40 x 78 mm
Battery: 2 x 1.5 V AAA
Weight: 237 g
Unipolar phase testing
Voltage range: 100 to 690 V AC
Frequency range: 50/60 Hz
Continuity test
Measuring range: < 300 kΩ
Test current: < 5 µA
Overvoltage protection: 690 V AC/DC
Phase sequence indicator
Voltage range: 100 to 400 V
Frequency range: 50/60 Hz
Measuring principle: double-pole and contactelectrode
Scope of delivery

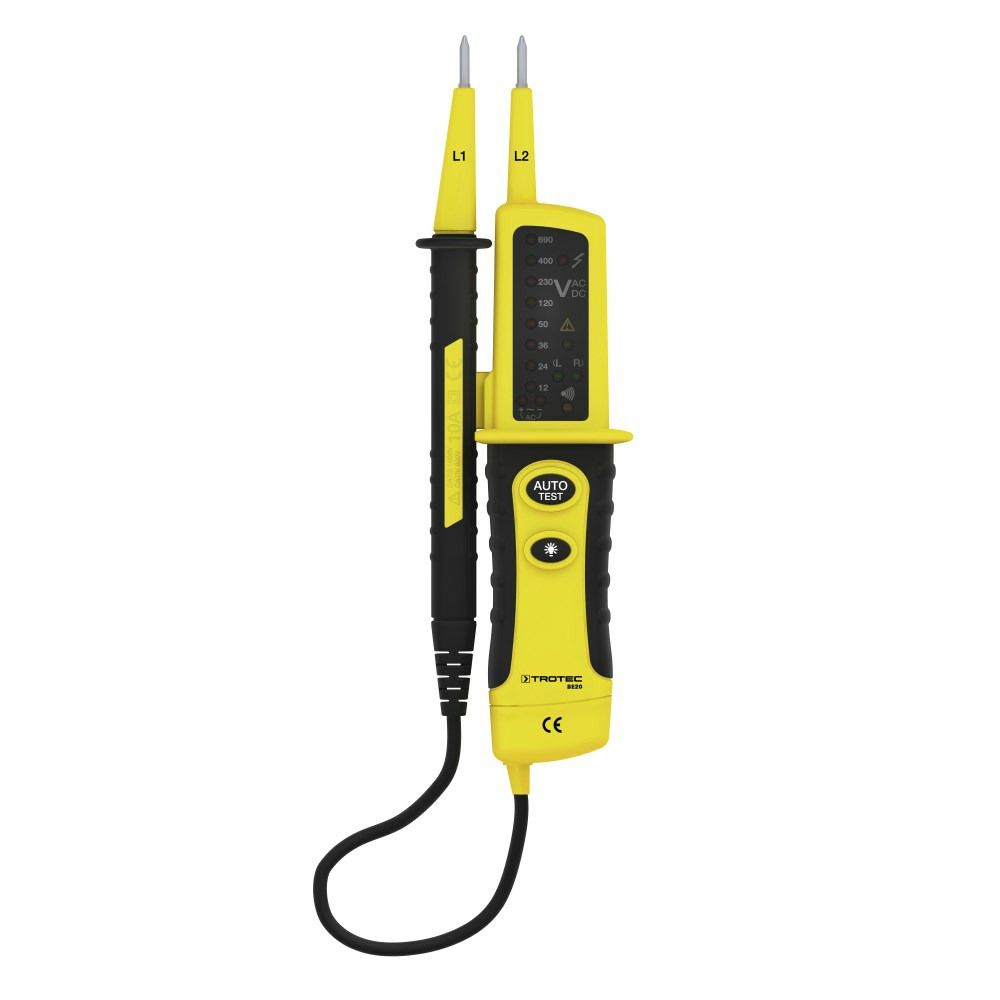

• 1 x Voltage detector BE20
• 1 x manual
