Diode test: Max. testing current of 1 mA; opencircuit voltage of 2.8 V DC (typically)
Continuity test: An acoustic signal is emitted if theresistance amount to less than 30 Ω.
Battery testing current: 9 V (6 mA); 1.5 V (100 mA)
Input impedance: >1 MΩ
V AC range: 45 Hz to 450 Hz
A DC voltage drop: 200 mV
LC display: 3 ½ digits. 2000 count LCD. 0.5 inch digits
Measuring range exceeded: OL will be displayed.
Polarity: Automatic (no indication for positive); minus (-) sign for negative
Measuring speed: 2 x per second. nominal
Battery indication: BAT is indicated if the battery voltage drops below the operating voltage threshold
Battery: 9 V monobloc battery
Fuses: mA. µA range: 0.5 A/600 V (fast acting) A range: 10 A / 600 V (fast acting)
Operating temperature: 0°C to 50°C (32°F to 122°F)
Storage temperature: -20°C to 60°C (-4°F to 140°F)
Relative humidity: Operation: <70 %; Storage: <80%
Operating height above sea level: Maximum 2000 m (7000 ft)
Weight : 260 g (9.17 oz.)
Dimensions: 121.5 x 60.6 x 40 mm(4.78" x 2.38" x 1.57")
Safety: This measuring device is designed for indoor use and complies with overvoltage category CAT II 600 V / CAT III 300 V. pollution level 2.
Measuring ranges
DC voltage (V DC): 200 mV~600V
AC voltage (V AC. 50 / 60 Hz): 200 V~600V
Direct current (A DC): 2000 µA~10A
Resistance (Ω): 200 Ω~2000 kΩ
Battery test: 1.5V~9V
Scope of delivery

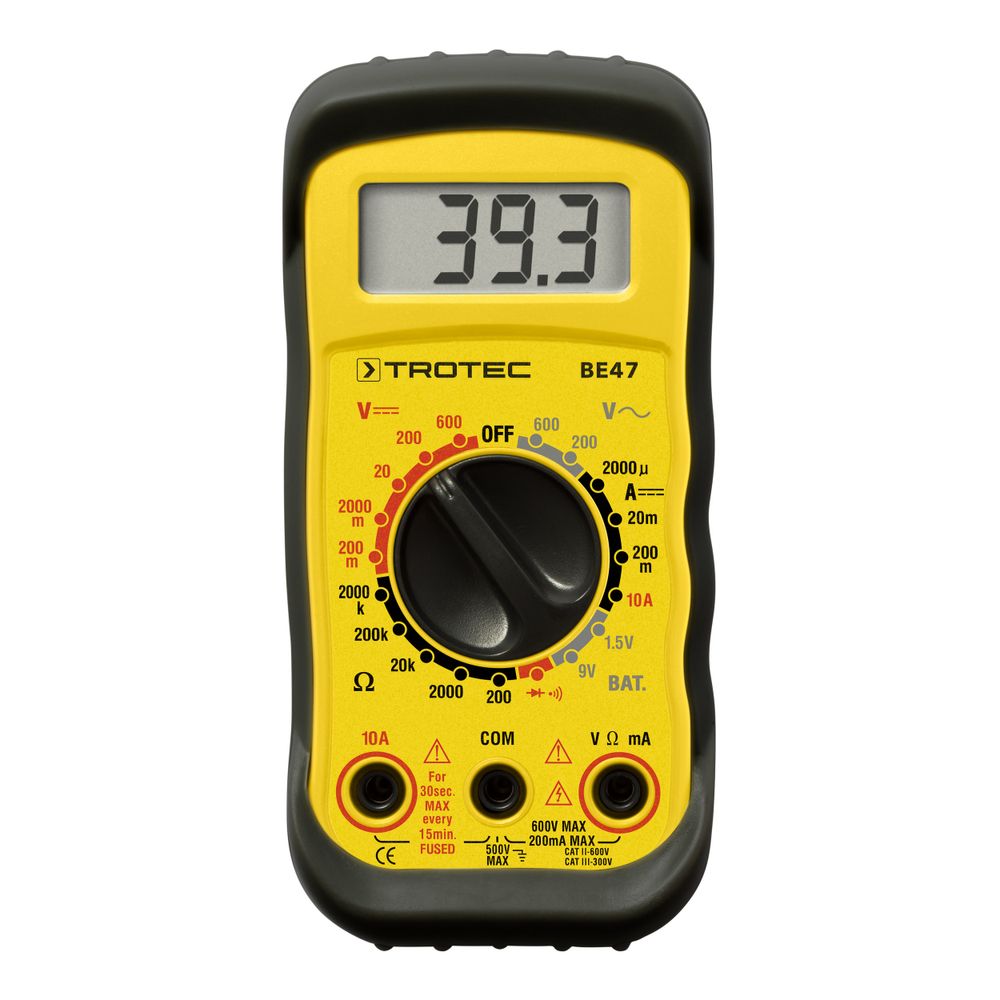

• 1 x Multimeter
• 1 x Safety measuring lines with test probes
• 1 x 9 V monobloc battery
• 1 x Quick guide
