Diode test: Test current of 0.3 mA; test voltage approx. 1.5 V DC (typically)
Continuity test: An acoustic signal is emitted if theresistance amount to less than 150 Ω.
LC display: 3 3/4 digits; 4000 count LCD
Exceedance of the measuring range (outside limits): OL will be displayed.
Polarity: Automatic (no indication for positive); minus (-) sign for negative
Measuring speed: 2 x per second; nominal
Battery indication: The battery icon will be displayed when the battery voltage drops below the operating voltage threshold.
Battery: 9 V battery
Fuses: mA; µA range: 0.5 A / 1000 V (fast acting) A range: 10 A / 1000 V (fast acting)
Operating temperature : 0°C to 50°C (32°F to 122°F)
Relative humidity: < 70 %
Operating height above sea level: Max. 2000 m (7000 ft)
Type of protection;' IP67
Weight: approx. 320 g (11.29 oz)
Dimensions: 182 x 82 x 55 mm (7.17" x 3.23" x 2.17")
Safety: This measuring device is designed for indoor use and complies with overvoltage category CAT III (1000 V) /CAT IV (600 V).
Measuring ranges
DC voltage (V DC): 400 mV~1000 V
AC voltage (V AC. 50 / 60 Hz): 400 mV~1000 V
Direct current (A DC): 400 µA~10 A
Alternating current (A AC): 400 µA~10 A
Capacitance (nF): 40 nF~100 μF
Resistance (Ω): 400 Ω~40 MΩ
Frequency / duty cycle: 9.999 Hz~9.999 MHz
Duty cycle %: 0.1-99.9 %
Temperature (°C / °F): -20 °C to +760 °C
Diode measurement: Test voltage: approx. 1.5 V ± 10 % + 5 digits; Test current: typ. 0.3 mA
Scope of delivery

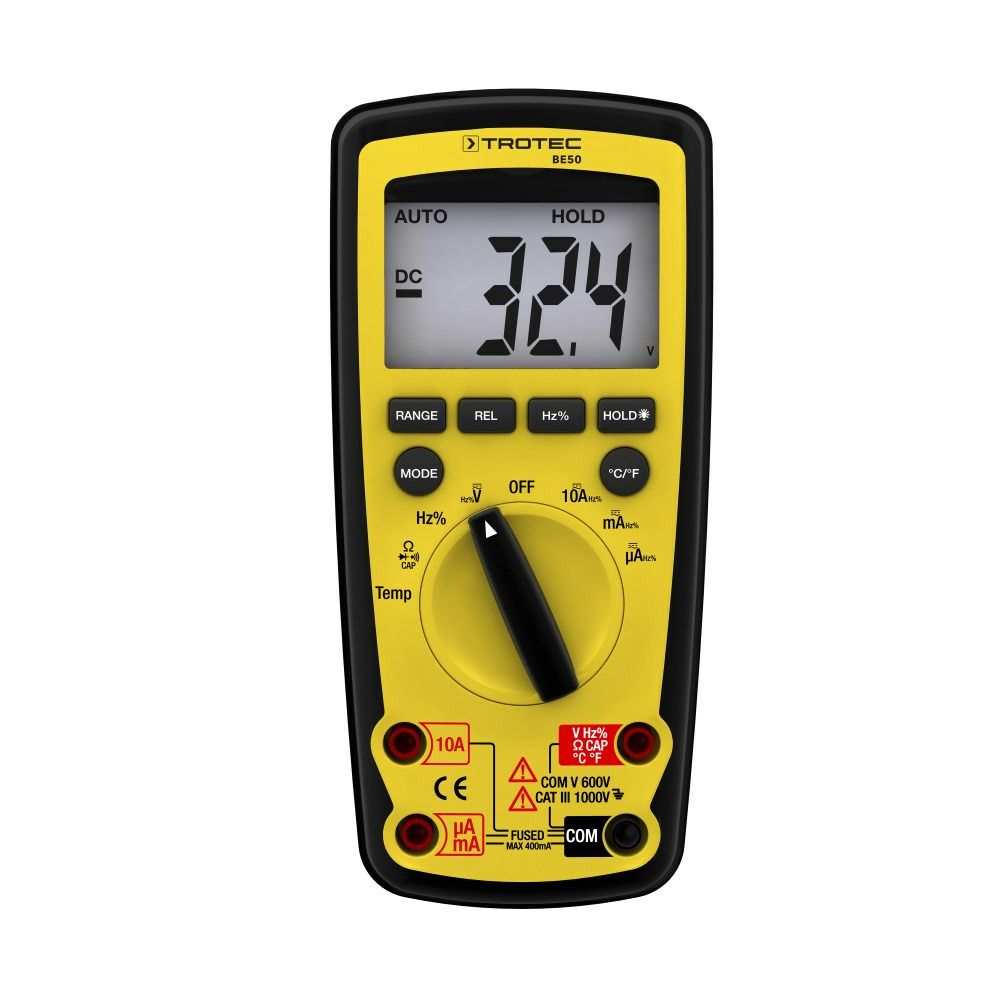

• 1 x Multimeter
• 2 x Measuring tip
• 2 x Protective cap for measuring tips
• 1 x Temperature sensor (type K) with adapter
• 1 x 9 V battery
• 1 x Quick guide
