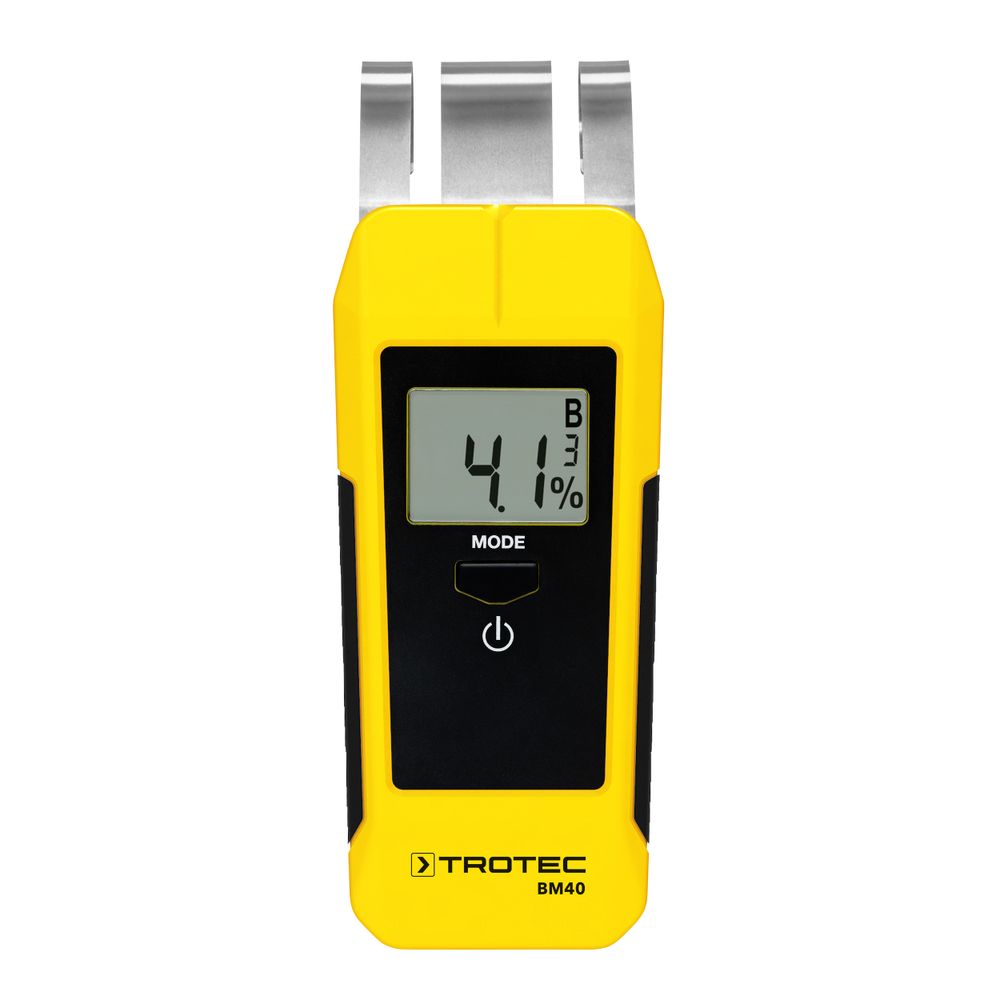

Trotec BM40 Moisture Meter (0 - 51 %; 0 - 50 mm)

Measuring principle: Dielectric/capacitive

Electrode length: Approx. 40 mm

Penetration depth, non-destructive: 0 mm to 50 mm

Measuring range:

Solid brick 0 % to 20 %

Anhydrite screed 0 % to 20 %

Cement screed 0 % to 20 %

Sand-lime brick 0 % to 20 %

Gas concrete 0 % to 20 %

High-insulating brick 0 % to 20 %

Concrete 0 % to 20 %

Hardwood 0 % to 50 %

Softwood 0 % to 50 %

Chipboard 0 % to 50 %

Temperature -10 °C to 55 °C

Resolution:

Wood 0.1 %

Mineral building materials: 0.1 %

Temperature: 0.1 °C

Ambient temperature: -5 to 50 °C with 0 to 85 % RH

Power supply:  1 x 9 V battery

Automatic switch-off: After approx. 10 min

Dimensions (length x width x height): 168 x 35 x 75 mm

Weight: 220 g

Scope of delivery

• 1 x Moisture measuring device

• 1 x 9 V battery

• 1 x Quick guide
