Dimensions of the device (height x width x depth): 210 x 75 x 50 mm
Weight of the device incl. Pitot tube and battery: 540 g
Length of the Pitot tube: 335 mm
Diameter of the Pitot tube: 8 mm
Hose lengths: 850 mm each
Operating conditions: 0 °C to +50 °C. < 90 % RH
Storage conditions: 0 °C to +50 °C. < 90 % RH
Power supply: 1 x 9 V battery
Air pressure:
Accuracy: ± 0.3 % at +25 °C
Pressure range: 0 to 5000 Pa
Pressure: max. 5000 Pa
Measuring range:
PSI: 0.7252
mbar: 50.00
inH2O: 20.07
mmH2O: 509.8
Pa: 5000
Resolution:
PSI: 0.0001
mbar: 0.01
inH2O: 0.01
mmH2O: 0.1
Pa: 1
Air velocity:
Measuring range
m/s: 1 to 80.00
ft/min: 200 to 15733
km/h: 3.6 to 288.0
MPH: 2.24 to 178.66
knots: 2.0 to 154.6
Resolution
m/s: 0.01
ft/min: 1
km/h: 0.1
MPH: 0.01
knots: 0.1
Accuracy: m/s: ±2.5 % at 10 m/s; ft/min. km/h. MPH. knots: The accuracy depends on the air velocity and the size of the air duct.
Air volume flow
Measuring range: CFM: 0 ft3 /min to 99999 ft3/min; CMM: 0 m3 /min to 99999 m3 /min
Resolution: CFM: 0.0001 to 100 ;CMM: 0.001 to 100
Temperature
Measuring range: °C: 0 °C to 50 °C; °F: 32.0 °F to 122.0 °F
Resolution: °C: 0.1; °F: 0.1
Accuracy: °C: ± 1.0 °C ; °F: ± 2.0 °F
Scope of delivery

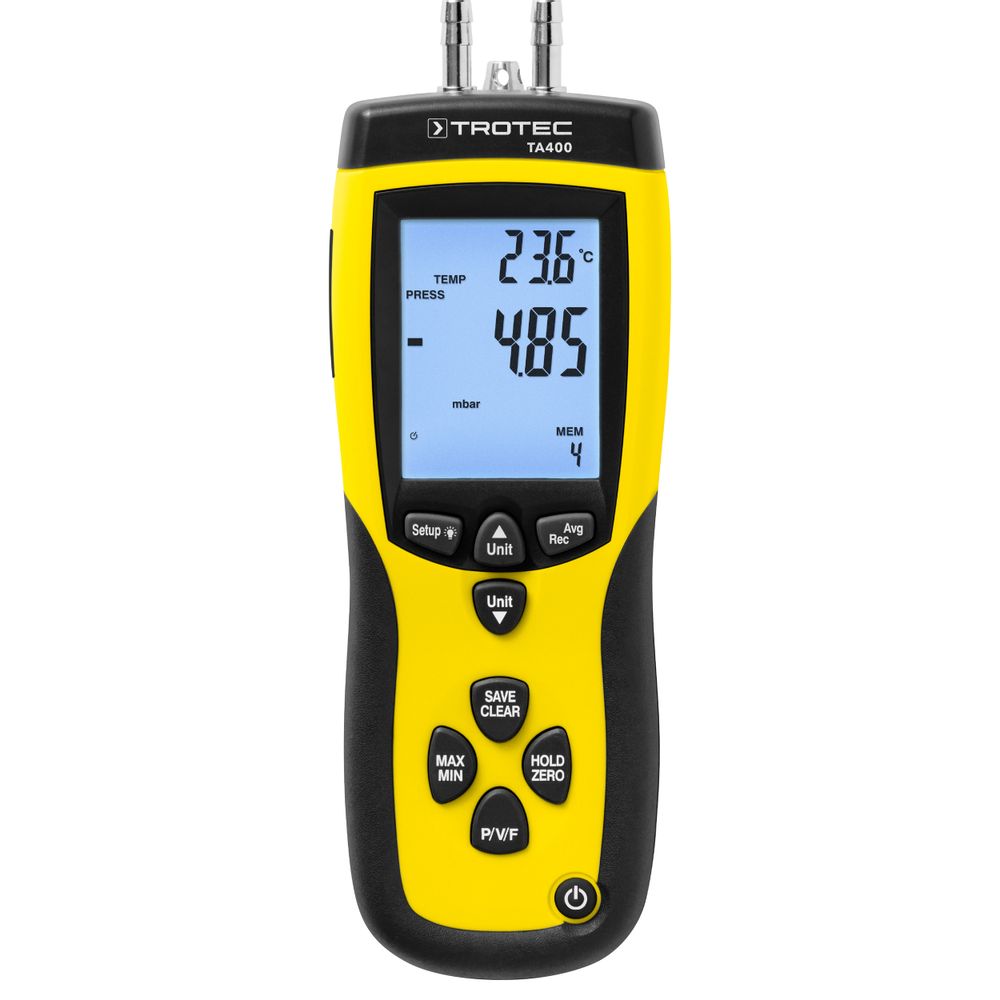

• 1 x Device TA400
• 1 x 9 V battery
• 1 x Pitot tube
• 1 x Tube. white
• 1 x Tube. black
• 1 x Transport case
• 1 x Mini USB cable
• 1 x CD-ROM with software
• 1 x Quick guide
