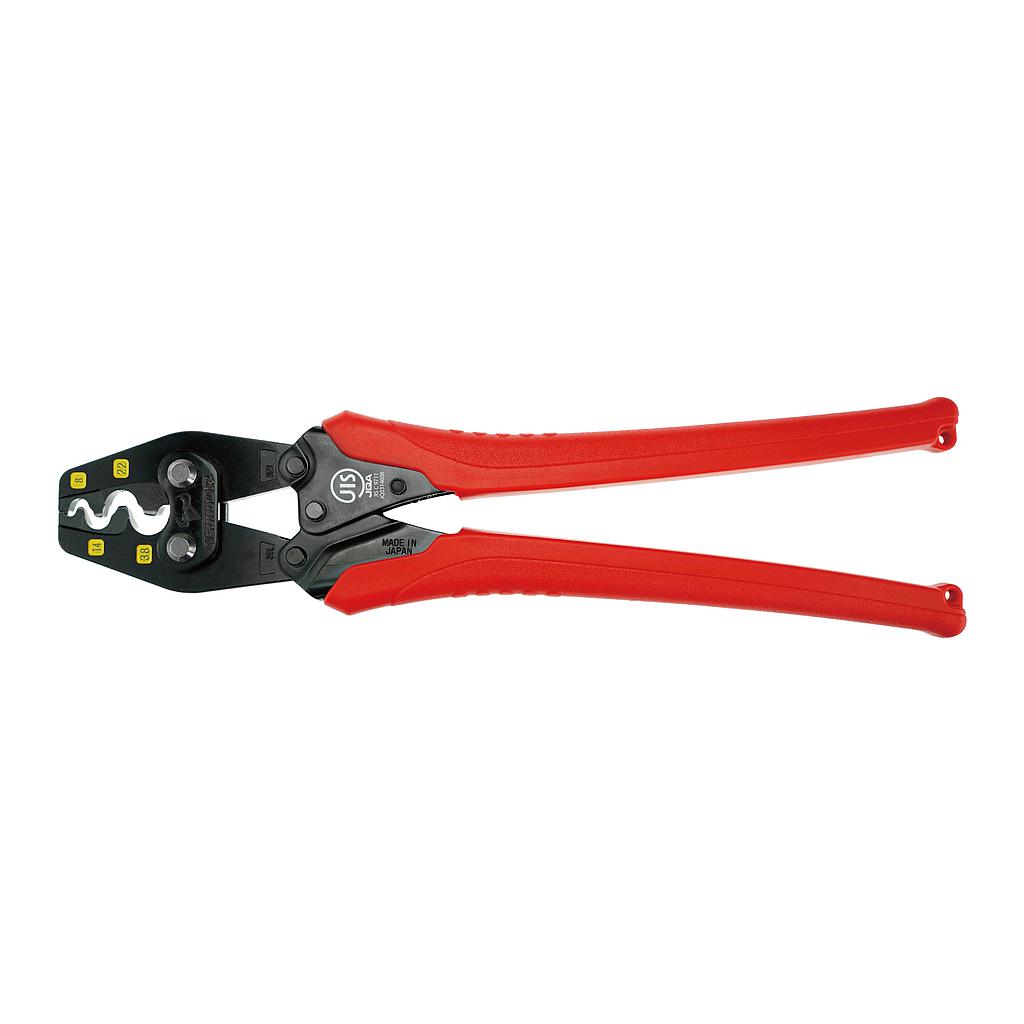

Tsunoda TP-38 Crimping Tool For Non-Insulated Terminals (8~38㎟)
Manufacturer: Tsunoda Model: TP-38 Origin: Japan Guarantee: 12 Month - Contact
Overall length: 345mm
Head width: 63mm
Head thickness: 7mm
Handle width: 86mm
Weight: 760g
EAN-code (4952269): 114270
Terminal size:
JIS: 8/14/22/38㎟
IEC/DIN: 10/16/24/35㎟
AWG: 8/6/4/2
Crimped Mark: 8/14/22/38
Material: Alloy steel
Head hardness [HRC]: 42～46
Handle part hardness [HRC]: 46～49
Handle cover: Elastomeric molded resin grips
