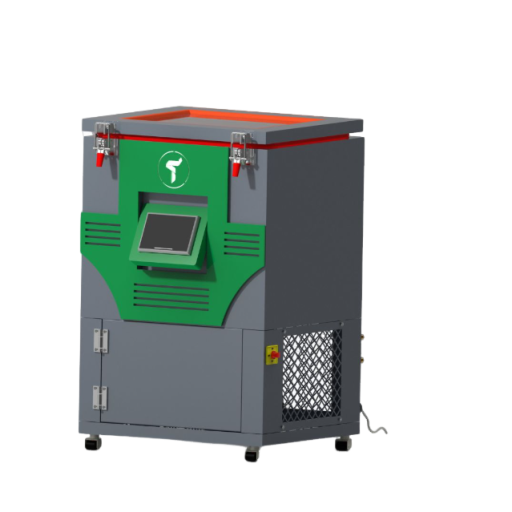

Tunix TCMTHC- G1 Temperature & Humidity Calibration Chamber (Ultra Low humidity application, 0°C ~ 50°C, 20% RH ~ 95% RH)

Hi performance Temperature / Humidity Calibration chamber with Top glass opening, HMI Touch panel, Ultra-low humidity application, Input Dry gas to be connected externally

Temperature

Temperature Range: 0°C to 50°C

Thermal Stability @50 %RH: ±0.2°C @0°C,@25°C;  ±0.8°C @50°C

Come Up Time (Time Required to achieve target temperature from ambient temperature): 45 Minutes @0°C; 20 Minutes @50°C

Stabilization Time: 15 Minutes

Thermal Non uniformity @50 % RH: ± 1.5°C

Relative Humidity

Relative Humidity Range @25°C: 20% RH to 95% RH

Relative Humidity  Stability @25°C: ±0.5%RH  @20%RH @50%RH; ±2.2%RH @95%RH

Come Up Time (Time Required to achieve target Relative Humidity from @50 %RH):  30 Minutes @20 %RH; 20 Minutes @ 95%RH

Stabilization Time: 15 Minutes

Relative Humidity Non uniformity @25°C:  ±1.5%RH @20%RH @50%RH; ±3%RH @95%RH

Temperature rise from ambient to maximum value @ambient of 25°C (25°C~50°C): NMT 20 Minutes

Temperature fall from ambient to minimum value @ambient of 25°C (25°C~0°C): NMT 45 Minutes

Temperature rise from Minimum to maximum value @ambient of 25°C (0°C~50°C): NMT 25 Minutes

Temperature fall from Maximum to minimum value @ambient of 25°C (50°C~0°C): NMT 60 Minutes
