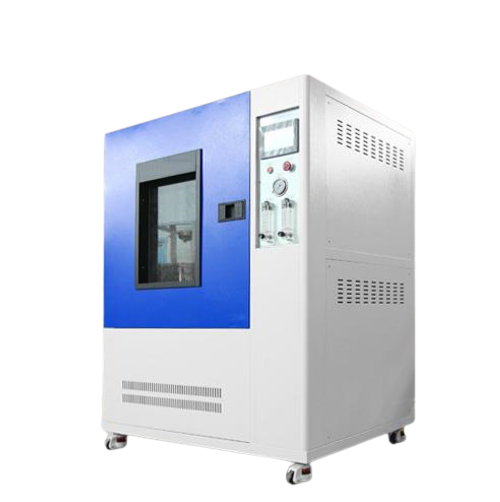

Uby Tech IPX1-2 Vertical Drop Rain Test (Box Type)

Used to test the IPX1, IPX2 waterproof level of the product

Specifications

External size: About L1250*D1020*H1750mm

Inner size: L800*D800*H1000mm

Drip board size: 600*600mm

Turntable diameter: ￠600 mm

Turntable height: 400-700 mm

Drip aperture: ￠0.4mm

Distance between drip holes: 20*20 mm

Rainfall: IPX1=1mm/min (+0.5mm/min); IPX2=3mm/min (+0.5mm/min)

Flow adjustment method: Manual adjustment

Drop rain board lifting method: Not liftable (fixed)

Turntable load-bearing: 50KG

Turntable tilt: 0° or 15° (horizontal direction)

Turntable speed: 1 r/min (IPX1), Can be set

Testing time: 0-999 min

Safety protection device: Leakage protection, water shortage protection, short circuit protection

Power supply: 220V, 50Hz

Sample load power supply: 220V, 50Hz

Power: 1kW
