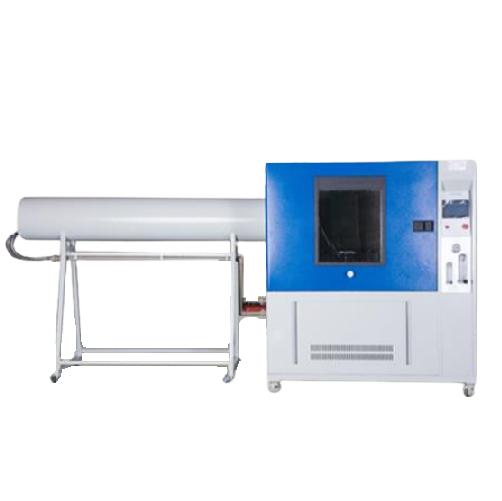

Used to test the IPX5 and IPX6 waterproof level of the product
Specifications
External size: L3700*D1190*H1820mm (include aqueduct)
Inner size: L1000*D1000*H1000mm
Sample turntable size: ￠600mm
IPX5 water jet aperture: ￠6.3mm
IPX6 water jet aperture: ￠12.5mm
IPX5 spray water flow: 12.5±0.625 (L/min)
IPX6 spray water flow: 100±5 (L/min)
Flow control method: Manual adjustment (rotor flowmeter)
Spray distance: 2.7 米 (The distance from the nozzle to the center of the turntable)
Maximum load-bearing capacity of turntable: 50kg
Lifting range of turntable: Not liftable (fixed)
Water spray method: Recyclable
Control system: (Touch type) 7 inch touch screen + PLC
Power supply: 380V, 50Hz
Test sample power: 220V, 50Hz
Power: 3kW
Safety protection function: Leakage protection, water shortage protection, short circuit protection
