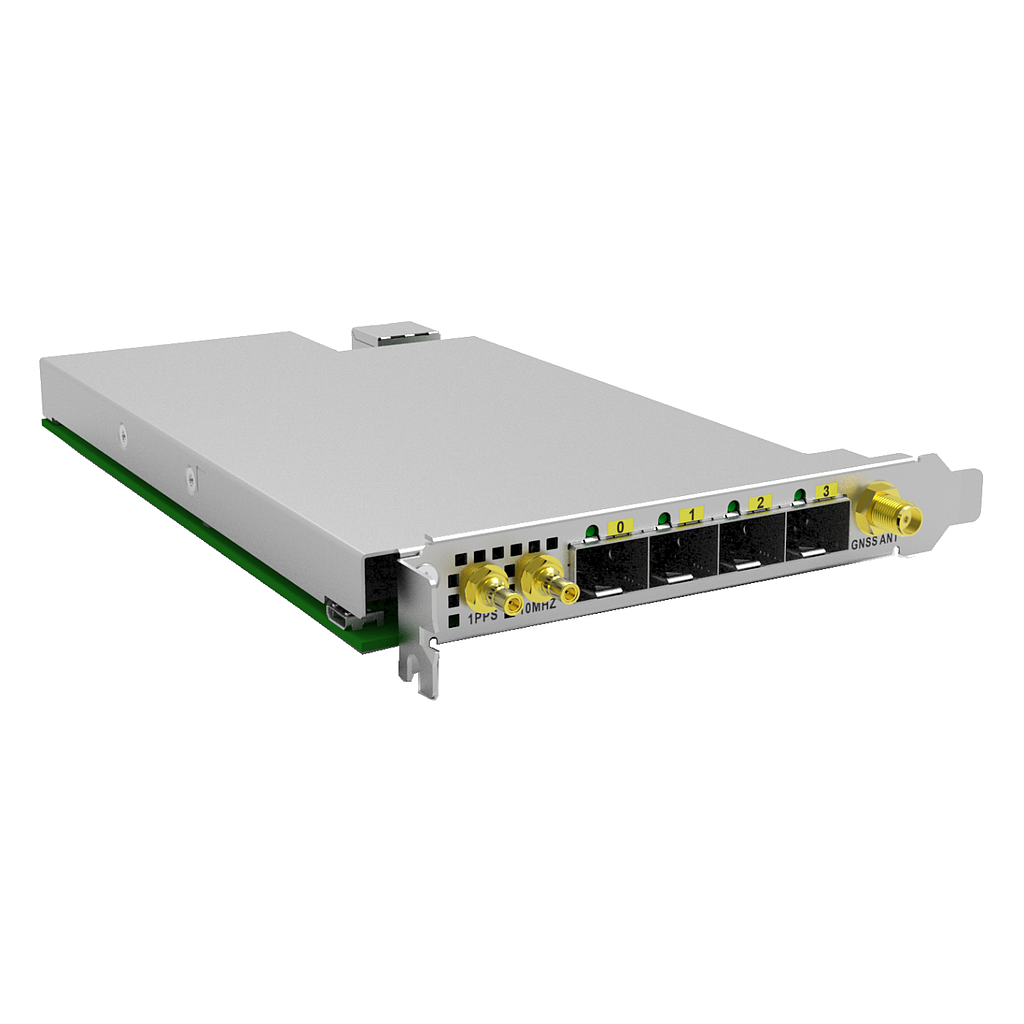

Ufispace N3100-4C 5G Timing Adapter

SPECIFICATIONS

Physical

Controller: Intel E-810

FPGA: Cyclone V SOC

Memory: 4GB DDR4

Timing Interfaces: 1 x GNSS input SMA

1 x 1PPS input/output SMB

1 x 10MHz input/output SMB

Chassis: 126.35W x 181.07D x 21.95H mm (4.97" x 7.12" x 0.86")

Weight: 0.44 kg (0.97lbs)

Environmental

Power Specs.: Maximum power: 48 Watts

Typical power: 34 Watts

Operating Specs.: Operating temperature: 0°C to 55°C (32°F to 131°F)

Operating humidity: 5% to 95% (RH), non-condensing

Non-Operating Specs. : Storage temperature: -40°C to 70°C (-40°F to 158°F)

Storage humidity: 5% to 93% (RH), non-condensing

Airflow: 500LFM
