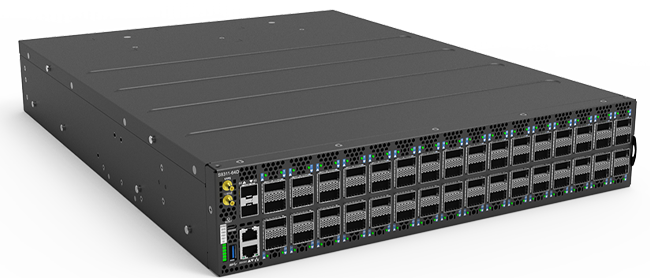

Ufispace S9311-64D Datacenter Switch for AI/ML (400G)

Physical

Processor: Intel Icelake-D 4 Cores @2.4GHz

Memory: 32GB DDR4

Storage: 128GB SSD

ASIC: Broadcom Tomahawk BCM56990

BMC: AST2620

Chassis: 2RU, 436W x 580D x 87.7H mm (17.17" x 22.8" x 3.45")

Weight without FRU: 18.52 kg (40.83 lbs)

Redundancy: 1+1 Hot swappable power units

3+1 Hot swappable fan units

Environmental

Power Specs.: AC input: 200 to 240V, 16A

DC input: -48V to -60V, 70A

Typical power: 387.5 Watts (no transceiver)

Operating Specs.: Operating temperature: 0°C to 40°C (32°F to 104°F)

Operating humidity: 5% to 95% (RH), non-condensing

Non-Operating Specs. : Storage temperature: -40°C to 70°C (-40°F to 158°F)

Storage humidity: 5% to 95% (RH), non-condensing
