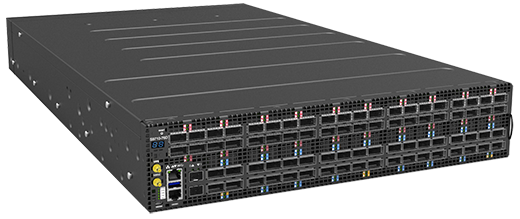

Ufispace S9710-76D High Density 400G Disaggregated Core and Edge Router (400G)

Physical

Processor: Intel Skylake-D 8-Core @ 1.9GHz

Memory: 32GB DDR4 (Up to 128GB)

Storage: 1x128GB SSD (Up to 2x128GB)

ASIC: Broadcom Jericho2c+ BCM88850

Broadcom OP2 BCM16K (Premium)

BMC: AST2400

Chassis: 2RU, 436W x 762D x 87.7H mm (17.17" x 30" x 3.45")

Weight without FRU: 26.95 kg (59.41 lbs)

Redundancy: 1+1 Hot swappable power units

3+1 Hot swappable fan units

Environmental

Power Specs.: AC input: 200 to 240V, 16A

DC input: -40V to -72V, 80A

Typical power: 667 Watts (no transceiver)

Operating Specs.: Operating temperature: 0°C to 45°C (32°F to 113°F)

Operating humidity: 5% to 85% (RH), non-condensing

Non-Operating Specs. : Storage temperature: -40°C to 70°C (-40°F to 158°F)

Storage humidity: 5% to 93% (RH), non-condensing
