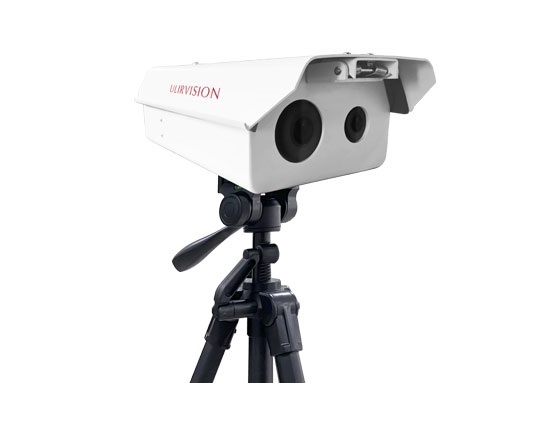

Ulirvision TI160-P11B Thermal Imaging Camera (384×288, 30~45℃)

Detector Data:

Type: Uncooled FPA

IR resolution: 384×288

Pixel pitch: 17μm

Spectral range: 7.5～14μm

NETD/Sensitivity: 65mK

Infrared lens:

FOV: 40°× 30°

Minimum imaging distance :50cm

IFOV: 1.889 mrad

Focus Fixed:

Lens Data: 9mm

Visible light camera:

Sensor type: 1/2.8"SONY Progressive Scan CMOS

Audio video:

Main stream: 1920*1080/1280*720 (Frame rate1~30fps adjustable)

Sub stream: 704*576/640*480/640*352/320*240 (Frame rate1~30fps adjustable)

Computer: Support IE6.0 and above version, Firefox, Google

Online browsing users: Support up to 5 users

Shell applicable environment: Aluminum alloy material, suitable for outdoor

Installation mode: Bracket installation

Temperature range: 30~45℃ error ±0.5℃ External blackbody mode accuracy±0.3℃

(External black body correction mode ±0.3℃)

Working environment: 16°C~35 °C

Humidity: 0% -85% RH

Power supply: DC12V 2A

Power consumption: <12W

Size: L335×W189×H107mm

Weight: <2500g
