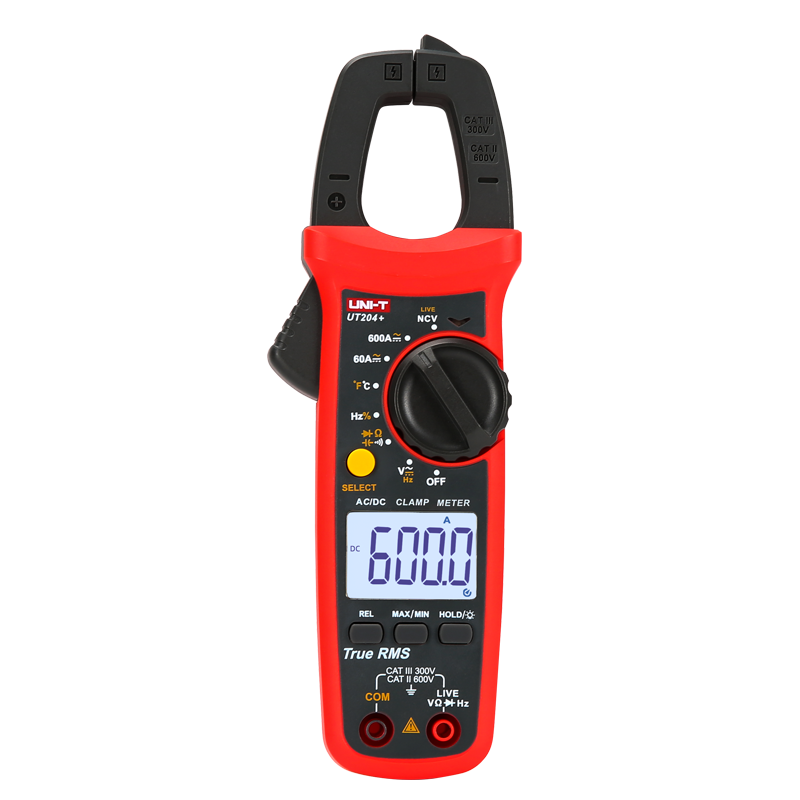

UNI-T UT204+ Digital clamp meter (AC/DC 600A,True RMS)

AC current (A): 600A ±(2.5%+5)

DC current (A): 600A ±(2.5%+5)

AC voltage (V): 600V ±(0.8%+5)

AC voltage frequency(Hz): 10Hz~60kHz ±(0.5%+2)

DC voltage (V): 600V ±(0.5%+2)

Resistance (Ω): 60MΩ ±(0.8%+2)

Capacitance (F): 60mF ±(4%+5)

Temperature (°C): -40°C~1000°C ±(1.5%+5)

Frequency (Hz): 10Hz~10MHz ±(0.1%+4)

Power: 1.5V battery (R03) x 2

Display: 37mm x 25mm

Product color: Red and grey

Product net weight: 235g

Product size: 215mm x 63mm x 36mm

Standard accessories: Batteries, test leads, Themocouple

Features

Display count: 6000

Auto range: Yes

Jaw opening: 28mm

True RMS: Yes

Diode test: Yes

Continuity buzzer: Yes

NCV: Yes

MAX/MIN: Yes

Relative mode: Yes

Zero mode: Yes

Live wire test: Yes/-

Data hold: Yes

Auto power off: Yes

LCD backlight: Yes

Input protection: Yes

Input Impedance: ≈10MΩ

Category ratings: CAT II 600V, CAT III 300V

Drop test: 1m
