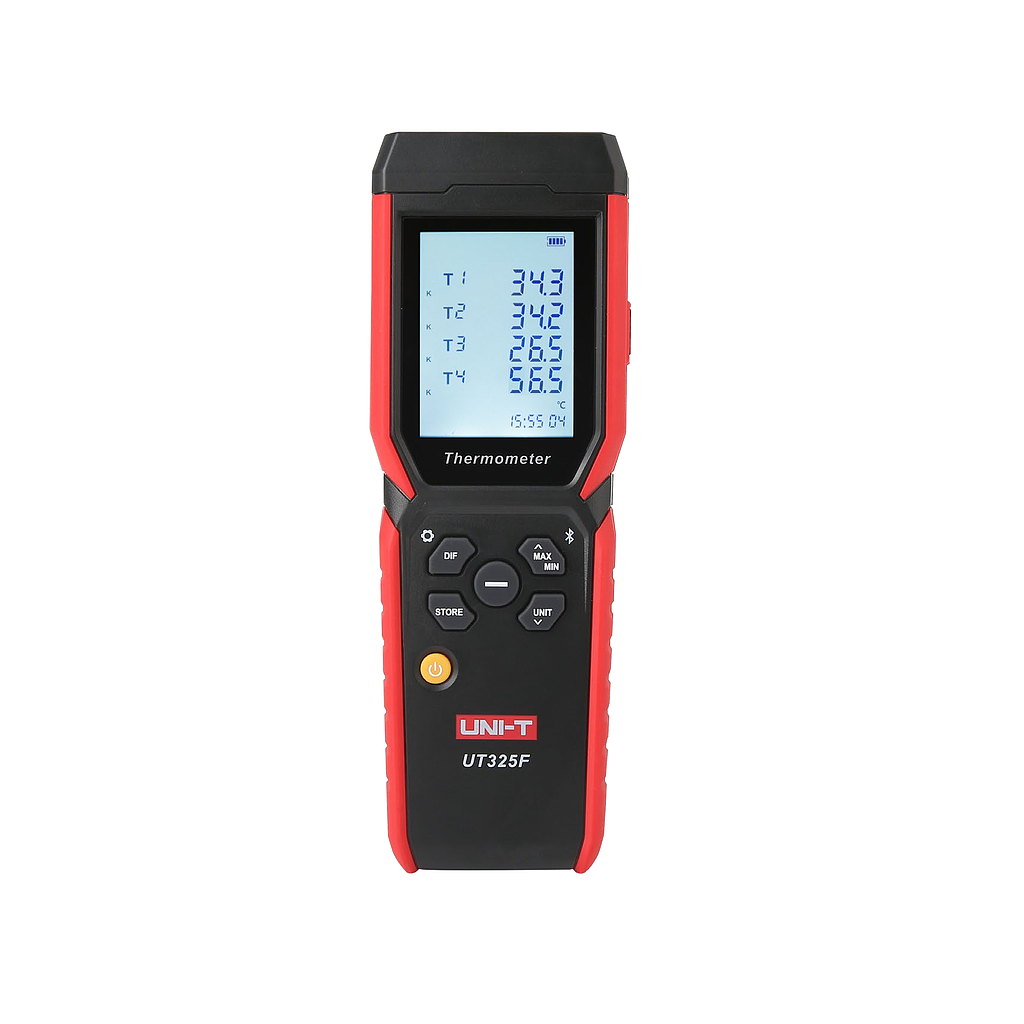

UNI-T UT325F Four channel thermometer (±0.1%+0.3℃)

Thermocouple types: Type K, J, T, E, R, S and N

Measuring range:

Type K thermocouple: -200.0℃~1372℃ (-328.0℉~2501℉)

Type J thermocouple: -210.0℃~1200℃(-346.0℉~2192℉)

Type T thermocouple: -250.0℃~400.0℃(-418.0℉~752.0℉)

Type E thermocouple: -150.0℃~1000℃(-238.0℉~1832℉)

Type R thermocouple: 0℃~1767℃(32℉~3212℉)

Type S thermocouple: 0℃~1767℃ (32℉~3212℉)

Type N thermocouple: -200.0℃~1300℃(-328.0℉～2372℉)

Display resolution: 0.1℃/℉/K (<1000); 1.0℃/℉/K (≥1000)

Accuracy:

±(0.2%+0.5℃);

±(0.2%+0.9℉)

Below -10℃: The original basis + 0.5℃;

Below -200℃: The original basis + 2℃;

Type T below -200℃: For reference only.

The accuracy is applicable to the ambient temperature of 18℃ to 28℃, and it does not include the error of the thermocouple

Repeatability accuracy: ±0.1%+0.3℃

Response time: About 500ms

Measurement functions:

Unit selection: ℃/℉/K

Data hold: √

Auto power off: √

Measurement modes: MIN/MAX/AVG

Difference: View temperature difference between any two channels

Timing measurement: The recording interval can be set for 1s-24h to record the measurement data periodically

System functions:

Data recording: 72000

Backlight: Turn on/off

Data transmission: Type-C USB, Bluetooth

Battery status: √

Power frequency anti-interference: 50/60Hz

Drop proof: 1m

Operating time: ﹥30h

Operating temperature: -10℃~50℃ (14℉~122℉)

Storage temperature: 20℃~60.0℃ (-4℉~140℉)

Operating humidity: 90%RH (non-condensing)

Characteristic

Standard accessories: 3*AAA battery, 4*thermocouples, product,user manual,safety instructions, gift box

Power: 3*AAA alkaline zinc-manganese battery

Product size: 178×63×38mm
