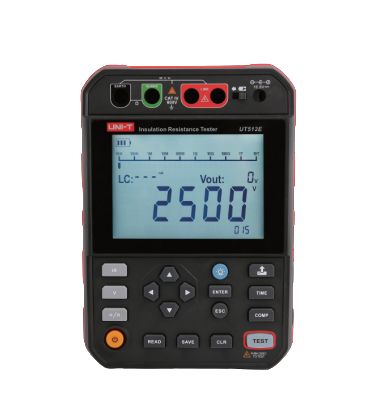

UNI-T UT512E Insulation Resistance Testers (2500V, 2.50TΩ)

Rated voltage

250V: <0.25MΩ, 0.25MΩ～4.99GΩ, 5.00GΩ～49.9GΩ, 50.0GΩ～250GΩ

500V: <0.50MΩ, 0.50MΩ～9.99GΩ, 10.0GΩ～99.9GΩ, 100GΩ～500GΩ

1000V: <1.00MΩ, 1.00MΩ～19.9GΩ, 20.0GΩ～199GΩ, 200GΩ～1.00TΩ

2500V: <2.50MΩ, 2.50MΩ～49.9GΩ, 50.0GΩ～499GΩ, 500GΩ～2.50TΩ

Accuracy: ±(5%+5), ±(20%+10)

Capacitance test: 0.01uF～2.0uF, Accuracy: ±（15%+3)

Low resistor test: 0.1Ω～600Ω, Accuracy: ±（2%+10)

DC voltage: 30～1000VDC

AC voltage: 30～750VAC, 50Hz/60Hz

Current: 0.01nA～5mA

Short-circuit current: about 5mA

Power supply: 14.8V, 5200mAh lithium battery

Weight: About 1800g (including battery)

Accessories: User manual 1 pc; Test lead (red, black, green: 1 for each) 3 pcs; USB cable 1 pc; Lithium battery charger (Output: 16.8Vdc, 2A) 1 pc ; Lithium battery pack (14.8V, 5200mAh) 1 pc ; Adapting charging stand (optional, model: UT-W12); Carrying strap 1pc
