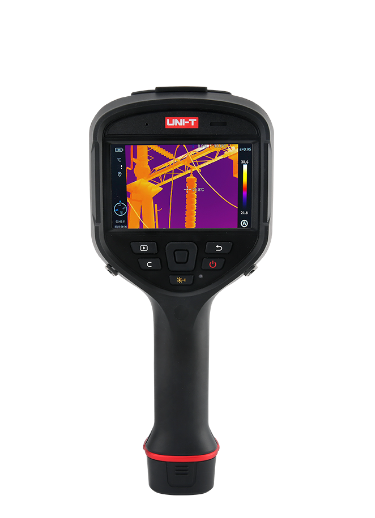

UNI-T UTi384J Intelligent Thermal Camera (384×288 Pixels, -40°C~150°C, 0°C ~650°C)

Display: 4.3” LCD Touch (800×480)

IR resolution(Pixels): 384×288

Super resolution: √(768×576)

Spectral range: 7.5~14μm

Pixel size : 12μm

Frame rate: 30Hz

Thermal sensitivity(NETD): ≤40mK

Focus: Manual / Automatic / Touch autofocus / Continuous autofocus

Lens recognition: Automatic

Infrared lens

Standard lens: Lens focal length: 17.7mm, Field of view(FOV): 25°×19°

Marco lens (Optional): Lens focal length: 16.2mm, Field of view(FOV):/

Wide-angle lens (Optional): Lens focal length: 10.0mm, Field of view(FOV): 44°×34°

Medium tele lens (Optional): Lens focal length: 29.0mm, Field of view(FOV): 15°×11°

Tele lens (Optional): Lens focal length: 62.9mm, Field of view(FOV): 7°×5°

High-temp lens (optional): Lens focal length:/, Field of view(FOV): 25°×19°

Temperature measurement range: Support auto-switching: -40°C~150°C, 0°C ~650°C, 500°C ~2000°C (Optional Hi-temp. Lens)

Accuracy: ±2℃ or ±2% whichever is greater

Functions

Color palettes: White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Green Hot, Ice and Fire, Amber, Customized

Image modes: Thermal, Visual image, Fusion, PIP

On screen analyzer: 10 Points/10 Lines/10 Rectangles/10 Circles

Isotherm: Automatic, Semi-automatic, Manual

Level & Span: √

Image outline: √

Panoramic stitching: √

Hi/Lo temperature alarm: LCD animation, LED flashlight, Buzzer

Hi/Lo temperature tracking: √

All-around voice assistant: √

Annotation: Text, Voice, Image

Digital camera resolution: 8MP

Digital zoom: 1.1x~10x

Video recording: √

Voice recording: √

Wi-Fi / Wi-Fi live streaming: √

Bluetooth: √

GPS: √

Laser pointer / LRF: √

LED lighting: √

Analysis software: PC+APP

General Characteristics:

Battery: 3350mAh detachable Li-ion battery pack

Operating time: ≥5 hours (with Wi-Fi off)

USB: Type-C

Storage: 64GB Internal & 64GB Micro SD card

Image storage format: Jpg

Video storage format: MP4 & Irgd

Protection: IP54 & 2m

Languages: ZH_hans, ZH_hant, EN, FR, DE, ES, IT, RU, PL, KR, PT, TR, TH, NO, CZ, HU, JP, AR

Weight: ≤1.15KG (included standard lens & battery)

Dimension: 292mm×125mm×125mm
