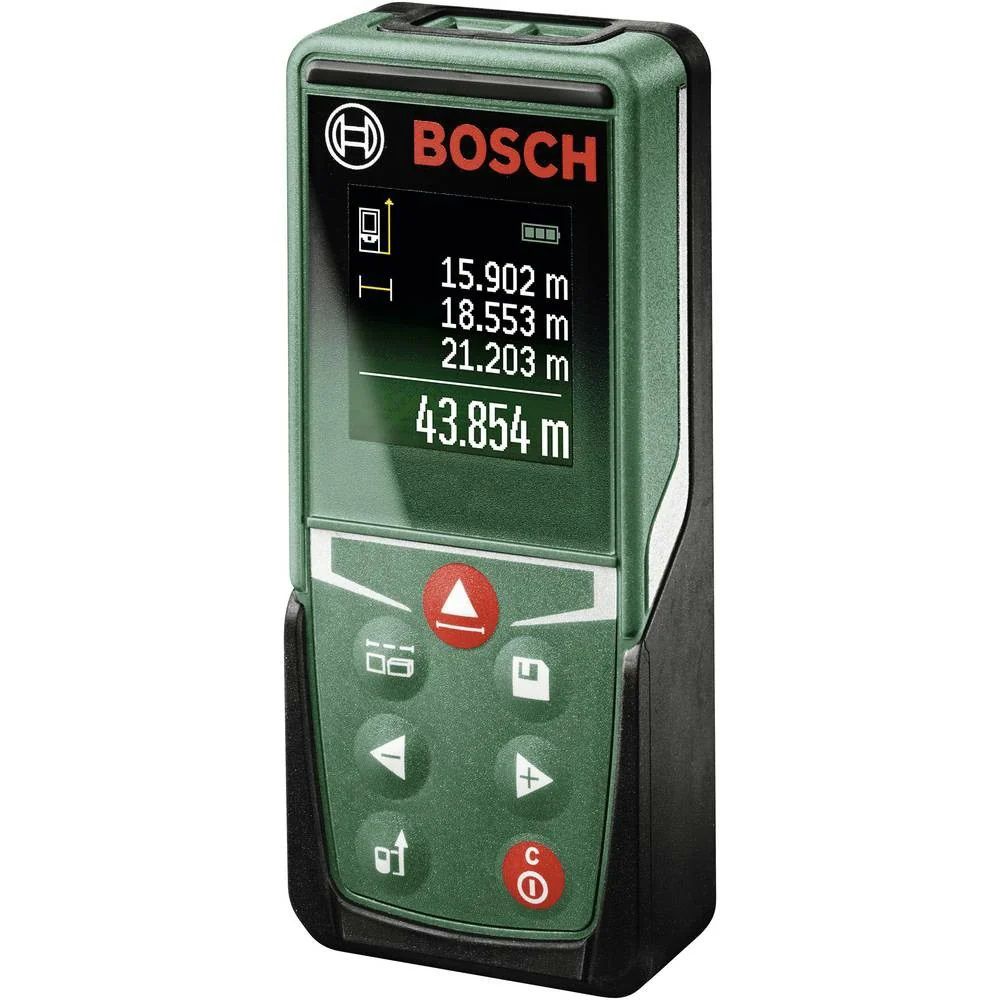

The Bosch GLM laser distance meter series has long been a staple on construction sites and in manufacturing workshops. However, most engineers and technicians currently utilize only basic operations such as measuring lengths, calculating floor areas, or determining room volumes. Behind the minimalist user interface lie sophisticated distance compensation algorithms and specialized hardware mechanisms engineered by Bosch for each equipment segment. Mastering these hidden features optimizes construction schedules and significantly reduces manual operational errors.
360° Inclinometer and Spatial Coordinate Calculation
An integrated 360° inertial tilt sensor within the processing circuit transforms the distance meter from a simple linear measurement device into a trigonometric coordinate calculation tool. When encountering line-of-sight obstacles—such as scaffolding, concrete beams, or partition systems—users cannot place the device directly against the base of the wall.
Integrated Models: the GLM 50-23 G and GLM 50-27 CG
Stake-Out Marking Function Combined with Jobsite Vibration Motor
For mechanical, electrical, and plumbing (MEP) installations, ceiling light fitting, fire protection piping, or drywall framing, laying out equal spacing using traditional tape measures is highly time-consuming. The Stake-Out (repetitive distance marking) feature addresses this challenge through a real-time continuous measurement mechanism.
Technicians pre-load the standard interval distance into the memory (for example, 1.2 meters for each threaded rod hanger point). As the operator moves along the installation line, the display shows the remaining distance required to step forward or back to reach the next mark. A key technical enhancement on newer generations is the addition of a vibration motor. In noisy jobsite environments filled with drilling and cutting sounds, direct haptic feedback delivered to the operator's hand ensures precise target identification without relying on acoustic signals or constantly watching the display.
Integrated Models: GLM 50-27 CG (equipped with a hands-free feedback vibration motor); GLM 100-25 C and GLM 150 C (allowing flexible setup of two distinct interval values, a and b, simultaneously).
Digital Viewfinder with 4x Zoom Camera and Continuous Beam Lock
The dispersion of red laser light outdoors under intense sunlight is the primary obstacle preventing the human eye from spotting the laser point at distances beyond 30 meters. Bosch solves this issue with an integrated digital viewfinder system built directly into the housing.
A high-resolution camera captures real-time imagery and displays it on a glare-resistant color IPS screen. The crosshair on the display aligns perfectly with the laser beam's focal point. Featuring up to 4x zoom capability, engineers can accurately target measuring points at distances from 100 meters up to 150 meters. Coupled with Permanent Laser Beam mode, the diode continuously emits light without automatically shutting off after 20 seconds, eliminating the need to repeatedly press the power button when targeting over long distances.
Integrated Models: GLM 100-25 C (measuring range up to 100 m); GLM 150 C (measuring range up to 150 m, featuring a high-resolution IPS display protected by Dragontrail toughened glass).
Wall Area Cumulative Calculation Algorithm
When estimating paint costs, calculating drywall requirements, or determining baseboard tiling volumes for multi-room apartments, manual methods require measuring each wall, calculating individual areas, and summing them up. The Wall Area algorithm automates this calculation sequence to significantly accelerate documentation tasks.
The user takes a single measurement for the ceiling height (H). The device locks this height value in place and allows consecutive length measurements of separate wall sections (L1, L2, L3,…). The internal microprocessor automatically calculates the total length of the walls and multiplies it directly by the initial height using the formula:
S total" =H×(L1+L2+L3+⋯)
All intermediate cumulative additions are processed automatically by the unit, eliminating errors caused by manual calculations or field notes.
Integrated Models: GLM 50 C, GLM 50-27 CG, GLM 100-25 C, and GLM 150 C.
Smart Multi-Functional Pin and Automatic Reference Point Switching
Measuring distances from non-square wall corners, narrow gaps, or diagonal room spans often introduces errors between 2 cm and 5 cm because the rear edge of the device cannot fit fully into blind corners. Bosch addresses this mechanical limitation with a multi-functional measuring pin concealed at the base of the unit.
The pin, made of metal or high-strength reinforced polymer, can flip out into two positions: a 90-degree angle to hook securely onto wall edges, and a 180-degree position to extend deep into tight, acute corners. The key feature is an internal micro-switch limit sensor within the hinge joint: as soon as the pin is flipped open, the device automatically shifts the zero-reference point from the rear edge of the housing directly to the tip of the pin. Users do not need to enter the menu to manually adjust the reference point, preventing forgotten settings that could compromise the accuracy of an entire dataset.
Integrated Models: GLM 50-27 CG, GLM 100-25 C, and GLM 150 C.
