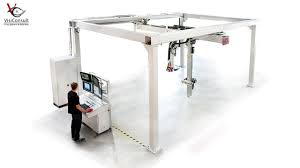

VisiConsult XRHGantry CR High-volume in-line ADR X-ray inspection cabinet
Manufacturer: VisiConsult Model: XRHGantry CR Origin: Germany Guarantee: 12 Month - Request a Quotation
- Contact
Manufacturer: VisiConsult
Model: XRHGantry CR
Origin: Germany
Warranty: 12 months
Max. part size (mm - Ø x height): 3800 x 1900
System size (mm L x W x H): 5900 x 3605 x 3500
System weight (kg): 4800
Console weight (kg): 175
Console size (mm): 1200 x 950 x 1600
Energy (kV): up to 450
Horizontal motion TX (mm): 3800
Magnification TY (mm): 2300
Focus Detector Distance FDD (mm): 100 - 2000
Focus Object Distance FOD (mm): 100 -2000
Vertical motion TZ (mm): 2000
Tilt RX (deg.): + 60°/ - 90° manuell
Part rotation RZ (deg.): + / - 10°
