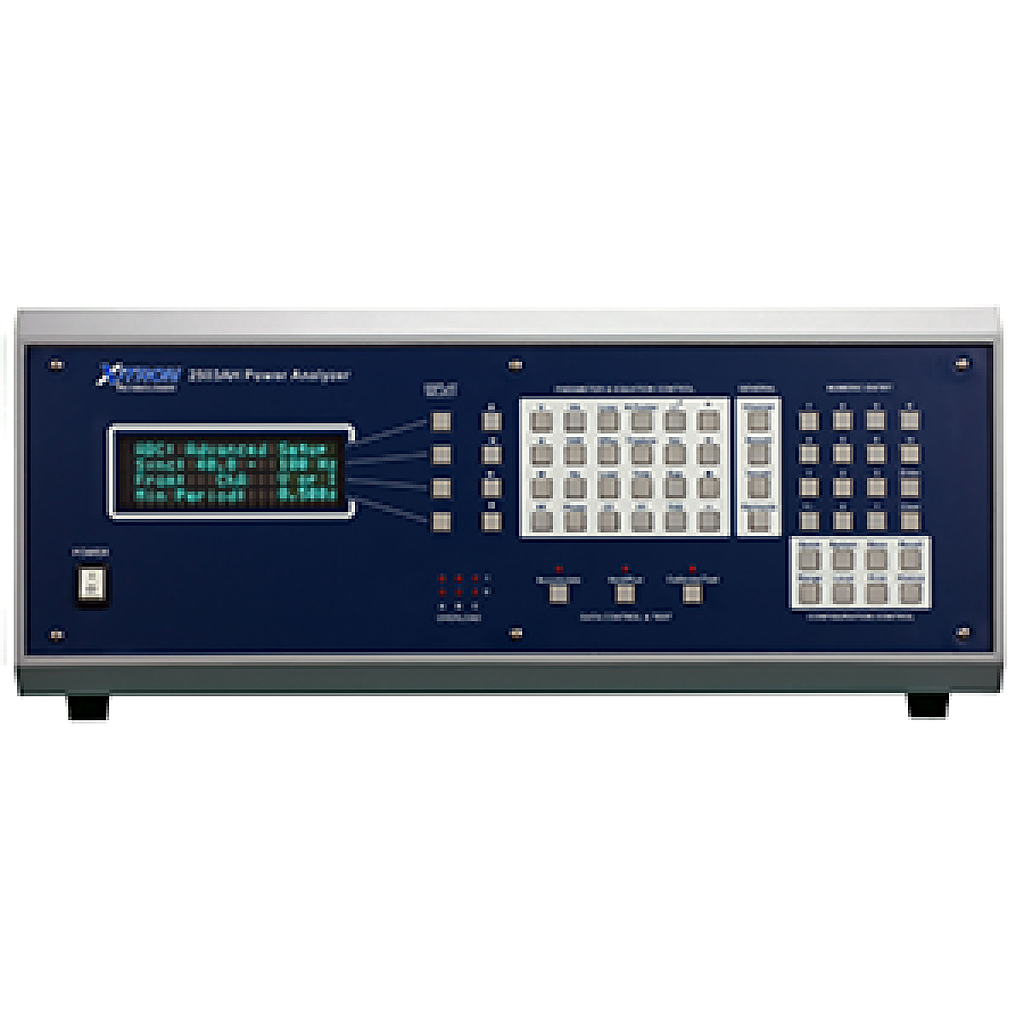

Power input: 85-265 Vrms autoselect 40-400 Hz @ 100VA max
Size: 17.71” wide by 7” high by 14” deep
Weight: 28 lbs.
Operating range: 0°C to 50°C, <85% RH @ 40°C non-condensing
Storage range: -30°C to 65°C <95% RH @ 40°C non-condensing
ISOLATION: Inputs are isolated from each other and ground for voltages up to 3000 Vpk
SETTING TIME:
0.0015 mSec (low pass filter disabled)
LOW PASS FILTERS:
User definable 5 Hz – 250 kHz, or disabled
FILTER AMPLITUDE ACCURACY:
Add 0.01%kHz for signal frequencies >5kHz
Filter rejection > 40 dB @ 3x selected filter frequency
Current and voltage accuracy specifications apply for input signals <0.05x selected filter frequency
HARMONIC & SPECTRUM ANALYSIS:
Bandwidth: 0.001 Hz to 170 kHz Max.
Harmonic: 2047
Max FFT size: 4096 point complex FFT
Typical THD, harmonic, and phase accuracy at line frequencies of 50/60 Hz
THD Accuracy: +/- 0.3%
Harmonic Accuracy: 0.03% of range
Phase Accuracy: 0.1° for freq., <5 kHz, linearly increasing to 5° @ 170 kHz
POWER FACTOR ACCURACY:
Approximately 0.001 for freq. 10kHz (5 kHz w/filter) increasing linearly to 0.01@200kHz (20kHz w/filter)
INPUT RANGES:
Voltage: 15-30-60-150-300-600-1200 Vrms
Current:
Shunt: 0.05-0.1-0.2-0.5-1-2-5-10-20 Arms
Int. CT: 7.5-15-30-60 Arms
Bypass: 12.5-25-50-125-250-500 mV rms, 1.25-2.5-5V rms
All ranges allow for up to 2.5X range peak
RESOLUTION: Better than 0.05% of range
VOLTAGE & CURRENT ACCURACY:
DC Volts: 0.05% +/- 0.15% range +/- 50 mVDC
Amp: 0.05% +/- 0.15% range +/- 200 μA
AC Volts/Amp:
0.001Hz-10 kHz: 0.05%
10kHz-20kHz: 0.10%
20kHz-50kHz: 0.33%
50kHz-100kHz: 0.55%
100kHz-200kHz: 1.00%
200khz-500kHz: 2.35%
For voltage add 0.05% of range + 20 mV
For internal shunt add 0.05% of range + 100 μA
For shunt bypass add 0.05% of range + 10 μV
Min input > 10% of range (1% with filter on)
