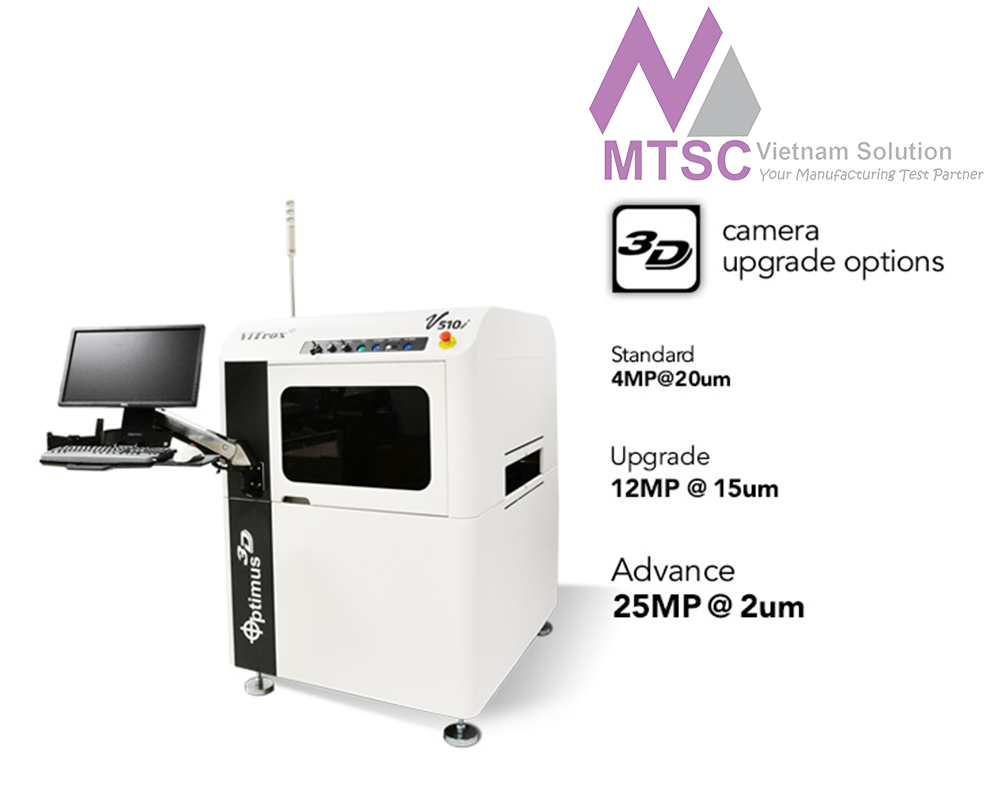

Acceptance testing machine Vitrox V510i Optimus 3D

Hãng sản xuất: Vitrox

Model: V510i Optimus 3D

Bảo hành: 12 tháng

Manufacturer: Vitrox

Model: V510i Optimus 3D

Warranty: 12 months

A - STANDARD VERSION:

PCB Dimension

Minimum PCB Size(L x W): 50x50mm (2”x2”)

Maximum PCB Size (L x W): 510x510mm (20”x20”)

PCB Thickness: 0.5mm-4mm (0.02”-0.16”)

Maximum PCB Weight: 3kg (6.6lb)

Clearance

Top Side of PCB: 50mm (2”)

Bottom Side of PCB: 70mm (2.76”)

Panel Edge: 3.5mm (0.14”)

Maximum PCB Warpage Compensation: ±5mm (0.2")

PCB Transport Height: 856mm - 965mm (33.7”x38”)

System Hardware

Camera & FOV Size: 4MP Camera Link Camera; 40x40 mm @ 20um resolution

Optical Resolution: Default: 20um telecentric lens*; Option: 11um telecentric lens*

Inspection Speed: 4MP @ 20μm resolution: 22.0 - 37.0cm²/sec

3D Technologies: Phase Shift Profilometry’s (PSP) Methodology with 4-way projectors

Lighting Module: Concurrent Lighting Module

Installation Specification

Width: 1060mm (3.5ft)

Depth: 1352mm (4.4 ft)

Height: 2028mm (6.7ft)

Weight: ~830 kgs

Electrical Supplies: 100-120 V, 16A/200-240V, 8A Single Phase

* Based on system configuration

B - FDL VERSION:

PCB Dimension

Minimum PCB Size (L x W): 50x50mm (2”x2”)

Maximum PCB Size (L x W): DL Equal: 510x235mm (20”x9.25”); Single Lane: 510x420mm (20”x16.5”)

PCB Thickness: 0.5mm-4mm (0.02”-0.16”)

Maximum PCB Weight: 3kg (6.6lb)

Clearance

Top Side of PCB: 50mm (2”)

Bottom Side of PCB: 70mm (2.76”)

Panel Edge: 3.5mm (0.14”)

Maximum PCB Warpage Compensation: ±5mm (0.2")

PCB Transport Height: 856mm - 965mm (33.7”x38”)

System Hardware

Camera & FOV Size: 12MP Coaxpress Camera; 60x45 mm @ 15um resolution

Optical Resolution: Default: 15um telecentric lens*; Option: 13um telecentric lens*

Inspection Speed: 12MP @ 15μm resolution: 45-60cm²/sec

3D Technologies: Phase Shift Profilometry’s (PSP) Methodology with 4-way projectors

Lighting Module: Concurrent Lighting Module

Installation Specification

Width: 1060mm (3.5ft)

Depth: 1352mm (4.4 ft)

Height: 2028mm (6.7ft)

Weight: ~830 kgs

Electrical Supplies: 100-120 V, 16A/200-240V, 8A Single Phase

* Based on system configuration
