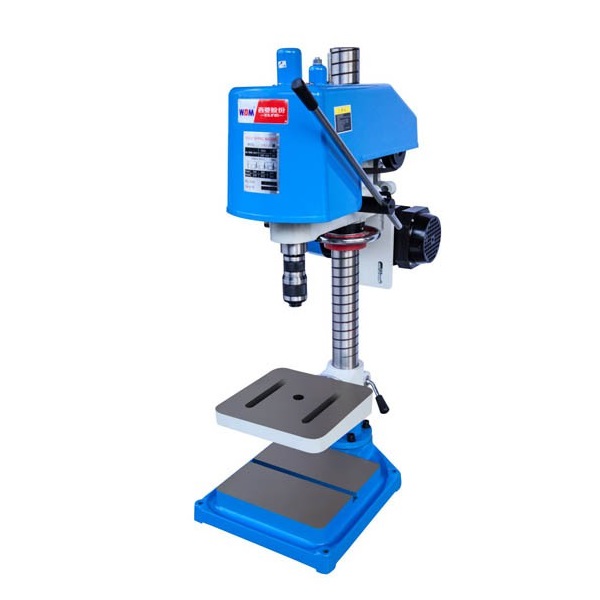

WDDM SWJ-24D Tapping Machine (1100W)

Tapping capacity: M20/M24

Motor type: squirrel-cage rotor

Motor power: 1100W

Voltage: 380V 3 Phase 50 HZ

Spindle type: B22

Spindle stroke (drill head): 50mm

Speed Levels: 3 levels

Spindle speed range: 230/350/500rpm

Table type: Square table

Working table size: 280mm x 280mm

Number of grooves on the workbench: 2 grooves

Column diameter: 70mm

Distance from spindle nose to table: 545mm

Distance from spindle nose to base: 760mm

Distance from spindle to column: 198mm

Machine height: 1057mm

Base dimensions: 495x375mm

Packing dimensions: 780x480x1160mm

Weight: 140/160kg
