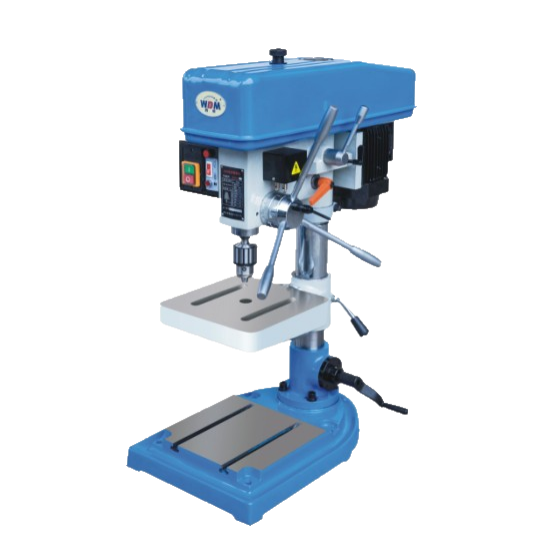

WDDM ZS4116D Tapping Machine (1HP)

Drilling capacity: 16mm

Tapping capacity: M10

Motor type: 4P squirrel-cage rotor

Motor power: 1HP

Voltage: 380V 3 Phase 50 HZ

Spindle type: MT2 taper (2nd taper)

Spindle stroke (drill head): 100mm

Speed Levels: 5 levels

Spindle speed range: 480~4100r/min

Table type: Square table

Working table size: 200mm x 230mm

Number of grooves on the workbench: 2 grooves

Column diameter: 70mm

Distance from spindle to table: 315mm

Distance from spindle to base: 556mm

Distance from spindle to column: 193mm

Machine height: 1037mm

Dimension of base: 528x360mm

Packing dimensions: 770x420x950mm

Weight: 90/108kg
