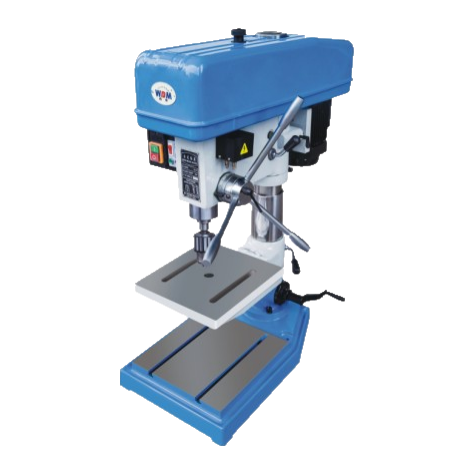

WDDM ZS4120D Drilling & Tapping Machine (1HP)

Drilling capacity: 20mm

Tapping capacity: M16

Motor type: 6P squirrel cage rotor

Motor power: 1HP

Voltage: 380V 3 Phase 50 HZ

Spindle taper: MT2

Spindle stroke (drill head): 125mm

Number of speed levels: 5 levels

Spindle speed range: 290-2150r/min

Table type: Square

Working table size: 280mm x 300mm

Number of grooves on the workbench: 2

Diameter of column: 85mm

Distance from spindle nose to table: 397mm

Distance from spindle nose to base: 560mm

Distance from spindle nose to column: 240mm

Machine height: 1127mm

Base size: 590x375mm

Packing dimensions: 820x480x1020mm

Weight: 140/165kg
