Receiver type: DDS-based dual-conversion superheterodyne with software-defined last IF stage and demodulator
Frequency range: 30 to 1000 MHz
Tuning resolution: 1 Hz
Mode: FMN, FMM, FMW
Spurious-free Dynamic Range: 93 dB
Image Rejection: 60 dB
RSSI accuracy: 5 dB
RSSI sensitivity: 1 µV
Selectivity:
FMN: 12 kHz (continuously variable)
FMM: 30 kHz (continuously variable)
FMW: 230 kHz
Sensitivity (12dB SINAD):
Mode: 30-500 MHz500-1000 MHz
FMN, FMM: 0.7µV0.8µV
FMW: 2.0µV2.5µV
Intermediate frequencies:
IF1: 109.65 MHz
IF2: 12 kHz
Frequency stability: 10 ppm (0 to 60° C)
Antenna input: 50 ohm (SMA connector)
Output: USB (1.0 and 2.0 compatible)
Dimensions:
Length: 164 mm (6.46")
Width: 96 mm (3.78")
Height: 41 mm (1.61")
Weight: 470 g (16.40 oz)
The standard WR-G33WSM package includes:

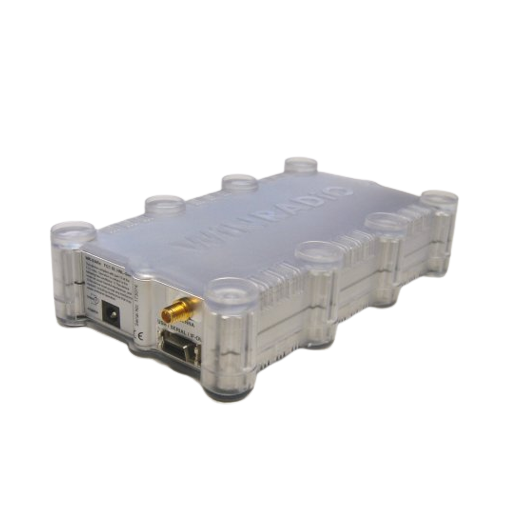

WR-G33WSM receiver
Application software
Telescopic antenna (AX-06B)
Magnetic antenna base (AX-91M)
BNC-to-SMA adapter
USB interface cable
AC/DC power supply
Comprehensive user's manual
- System requirements:
PC with 700 MHz Pentium CPU or faster (or Apple Mac with Intel CPU and BootCamp)
Windows XP, Vista, Windows 7, 8, 10 or 11
One free USB port
