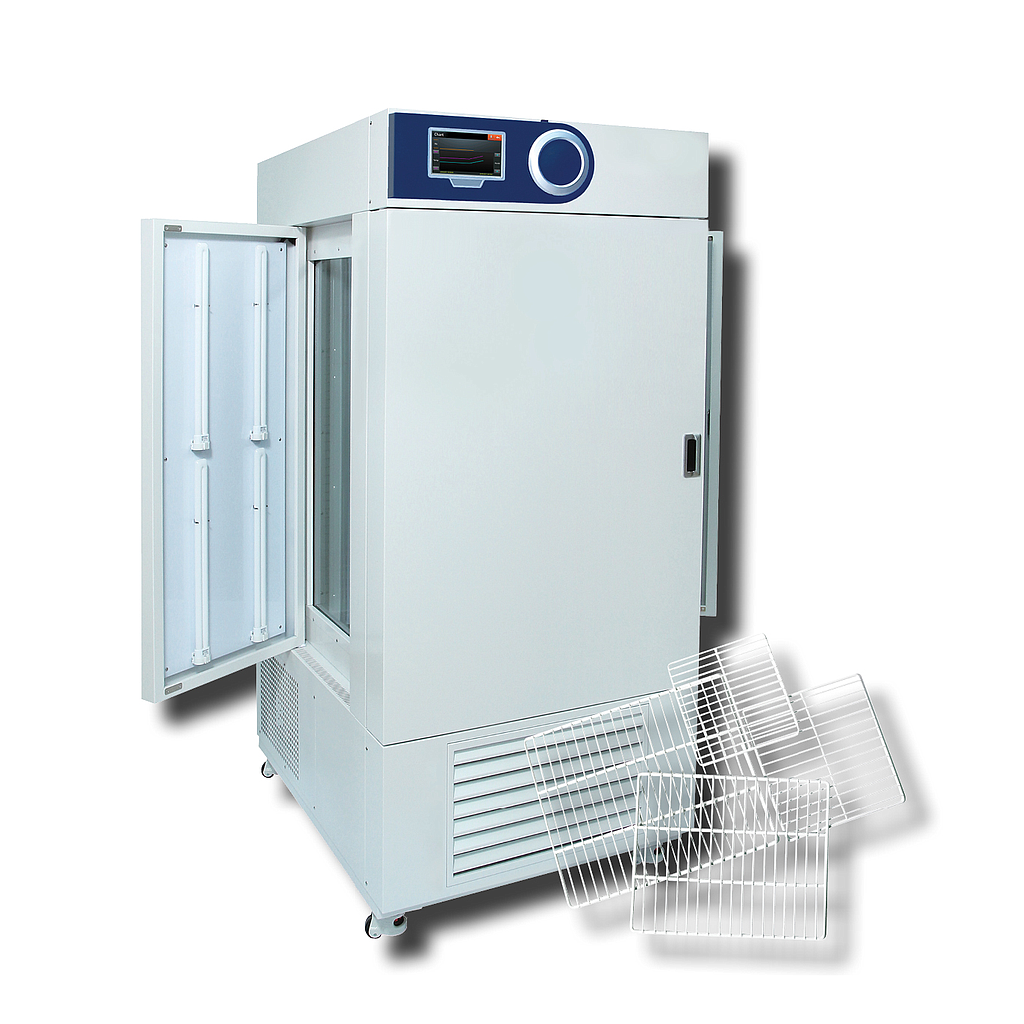

WITEG SWGC-1000 Plant Growth Chamber (10°C - +60°C; 864 l )

  • Manufacturer:WITEG
    Model: SWGC-1000
    P/N: DH.SWGC61000
    • Request a Quotation Request a Quotation
  • Contact
    • Add to Cart
    • Buy
  • Contact us for the best price

    Myanmar: 09 266993007

    Email: info@emin.com.mm

Capacity: 864 l ( 2 doors)

Temperature range & variation: 10°C - +60°C, ±1°C at 20°C

Temperture fluctuation: ±0.5°C at 10°C, ±0.5°C at 25°C (0% light intensity) / ±1°C at 10°C, ±1°C at 25°C (100% light intensity)

Humidity range, fluctuation & variation: 30% - 95% RH, ±1%, ±3% at 60°C

Humidifier: Evaporation by fan with heater

Illumination lamp & range: 28 x FPL 55 W, 0 to 15.000 Lux

Illumination bank: 3 x light banks: left, right, front

Temperature & humidity sensor: Temperature: PT100, humidity: capacitive sensor

Heat-up time (up to 37°C): 11 min (0% illumination) / 9 min (100% illumination)

Cool-down time (down to 10°C): 13 min (0% illumination) / 15 min (100% illumination)

Recovery time (door open 30sec): 3 min to 10°C, 1 min to 37°C (0% illumination); 5 min to 10°C, 1 min to 37°C (100% illumination)

Heating power (temperature & humidity): 3.0 kW

Compressor: 750 W

Shelves: 8 PE-coated steel wire shelves (16 kg/shelf)

Internal dimensions (W x D x H): 1200 x 790 x 1050 mm

External dimensions (W x D xH): 1200 x 1150 x 1965mm

Packing size & gross weight: 1600 x 1150 x 2200 mm, 585 kg

Power supply: 3 phase AC 230V, 50/60 Hz

Power consumption: 6.5 kW
