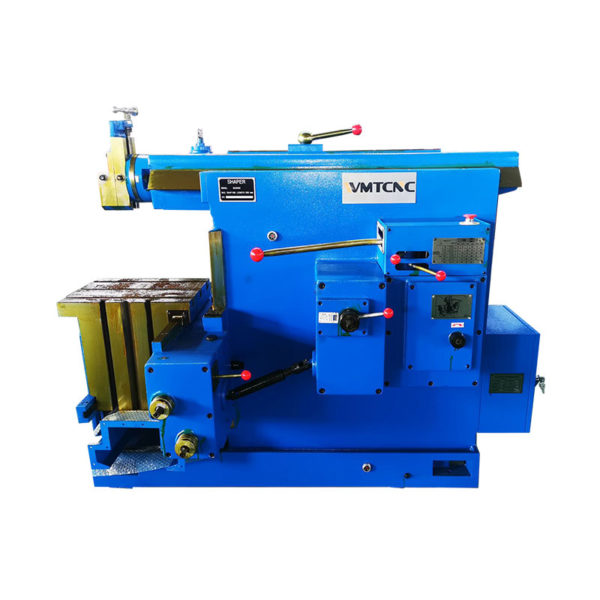

WMT CNC BC6050 Shaping Machine (3W)
Manufacturer: WMT CNC Model: BC6050 Guarantee: 12 Month - Contact
Maximum planing length: 500mm
Maximum distance from the bottom of the working table: 370mm
Lateral travel: 525mm
Vertical stroke: 270mm
Tool frame travel: 120mm
Sleeper reciprocating times (per minute): 14/20/28/40/56/80
Main motor power: 3W
The maximum size（width*thickness）of the handle: 20×30mm
The size of the T groove in the center of the worktable: 18mm
Angle of rotation: ±60° (toolpost)
Workbench size: 440×360mm
Shape size: 2000×1250×1400mm
Machine tool weight (about): 1650/1760KG
Package dimensions: 2000/1300/1600mm
