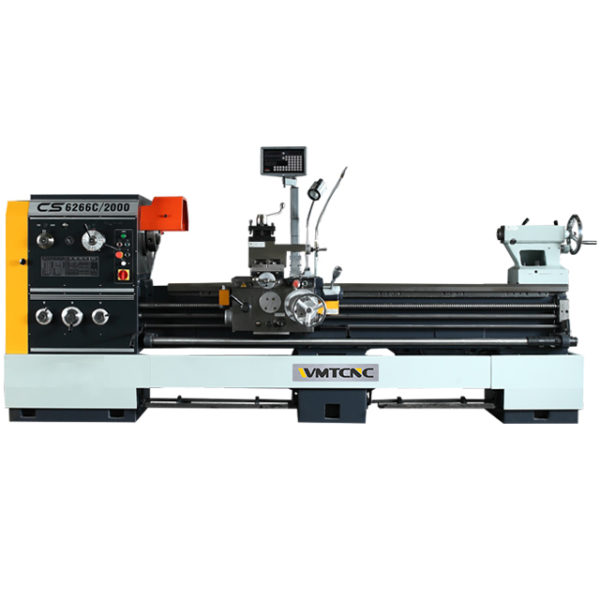

WMT CNC CS6266C Engine Lathe (60w)

Max. swing over bed: Φ660mm

Max. swing in gap: Φ870mm

Max. swing over slide: Φ420mm

Max. workpiece length: 1000/1500/2000/3000mm

Spindle bore: Φ105mm

Type of spindle: ISO 702/III NO.8 com-lock type

Spindle speed: 12 steps 36-1600rpm

Spindle motor: 7.5kw

Diameter of quill: Φ90mm

Max. travel of quill: 150mm

Taper of quill: MT5

Tool O.D. size: 25×25mm

Max. X travel: 145mm

Max. Z travel: 310mm

X feed range: 65 kinds 0.063-2.52mm/r

Z feed range: 65 kinds 0.027-1.07mm/r

Metric threads: 22 kinds 1-14mm

Inch threads: 25 kinds 28-2t.p.i

Cooling pump: 60w

Length: 2632/3132mm/3632/4632mm

Width: 975mm

Height: 1450mm
