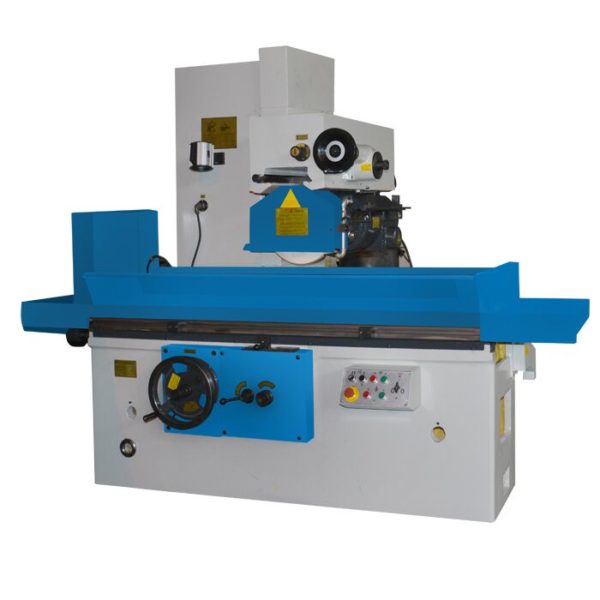

WMT CNC M7150 Surface Grinding Machine (7.5kW)

Max workpiece to be ground: 1250x500mm

Max. table longitudinal movement: 1350mm

Distance from table to wheel spindle center: 800mm

Max. lateral displacement of the grinding head: 580mm

Grinding head vertical feed per revolution: 1mm

Grinding head vertical feed per grid: 0.01mm

Fast lifting motor

       Power: 0.37kw

       Speed: 1450rpm

Wheel Size(dia×width×bore): 400x40x127mm

Spindle speed: 1440rpm

Spindle motor: 7.5kw

The mechanical surface of the base of parallelis: 300/0.004mm

Surface roughness: Ra:0.63μm

N.W/G.W: 5300/6000kgs

Packing size: 3800x2700x2800mm
