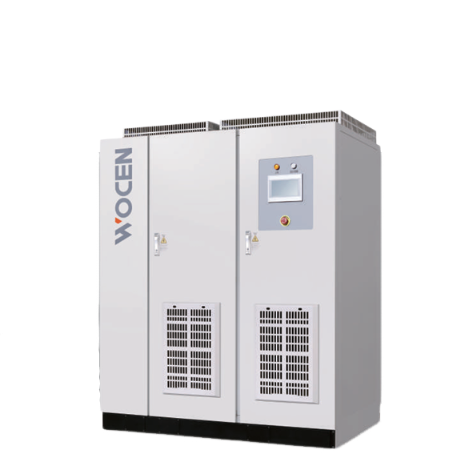

WOCEN EVWS-050-1000 Battery Simulator (50kW, 250V, ±200A)

Rated Power: 50kW

Peak Power: 75kW

Output Voltage: 24 ～1000V

Rated Voltage:  250V

Rated Current: ±200A

Peak Current: ±300A

Size(WxHxD): 800x1800x980mm

AC characteristic

Input mode: 3-phase 3-wire +PE

Voltage: AC380V±10%

Frequency: 50Hz±5Hz

Power factor: ≥0.99

Total current harmonic: ≤3%

DC characteristic

Output accuracy: ≤±0.1%FS

Source effect: ≤0.1%FS

Load effect: ≤0.1%FS

Ripple (Vrms): ≤0.2%FS

Response time: ≤3mS（10%~90% sudden loading）

Feedback characteristic

Alternating current voltage: AC 342V~420V(Allowable voltage range)

Ac frequency: 45Hz~55Hz (Allowable grid frequency)

Power factor: ≥0.99

Total harmonic content: ≤3%

Switching timer: ≤6mS(+90%~-90% switching)

Feedback power: Supports full scale power feedback

Communication interface: RS485,CAN, LAN

Safety feature

Insulation resistance: ≥20MΩ

Voltage resistance: 2000VDC test 60S, no flashover, breakdown

Ground resistance: ≤100mΩ

Noise: ≤65dB

Protection grade: IP21(Indoor)

Cooling mode: Forced air cooling

Working environment

Ambient temperature: -10~45℃

Ambient humidity: 10%~90%(no condensation)

Altitude: ≤2000m
