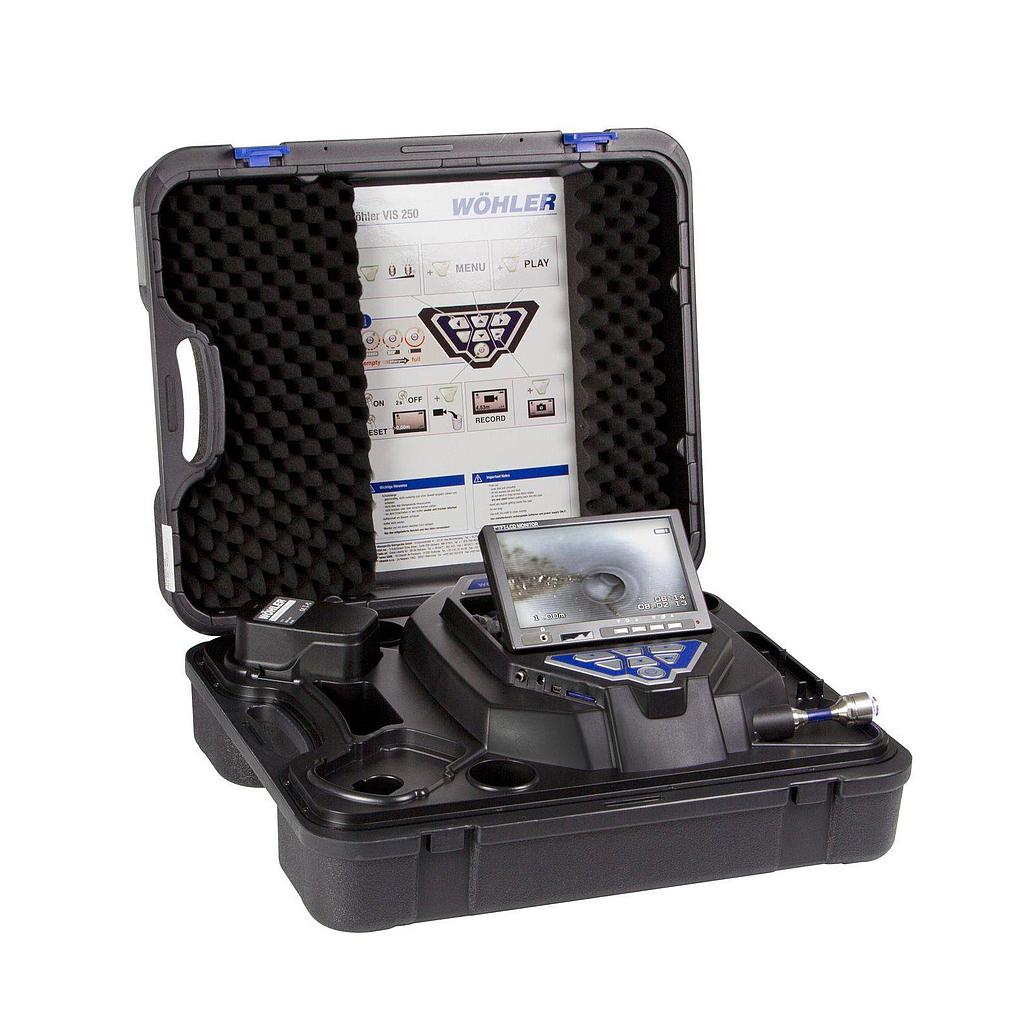

Wöhler VIS 250 Visual Inspection Camera

Monitor

Dimensions housing: 176 x 114 x 32 mm

TFT-display: 7" / 16:9 format

Video out: RCA signal

Weight: 400 g

Power supply: Space for 2 rechargeable batteries, each 12 V or via power pack

Battery operating time: Max. 2 rechargeable batteries, each 120 mins. = 4 h (battery status in display)

Wöhler miniature camera head Ø 26

Type: 1/3" COLOR CMOS

Resolution: 420 lines

Pixels: 768 x 576 (PAL)/656 x 492 (NTSC)

Light sensitivity: 0.5 Lux

Lens: f = 2.3 mm, F = 2.5

Viewing angle: 145°

Light source: 12 white LEDs

Degree of protection: Waterproof to IP 68

Dimensions: Ø 26 x 38 mm

Weight: 240 g

Operation temperature: 0...40 °C, RH 95 % MAX

Storage temperature: -20...50 °C, RH 95 % MAX

Transmitter frequency: 9.2 kHz

Distance measurement: Electronic meter counter

Plastic case

Dimensions: 51 x 43 x 17 cm

Weight: 7 kg

Memory (Wöhler VIS 250)

Recording: 4 GB SD card (5h recording capacity)

Interface: Mini USB port
