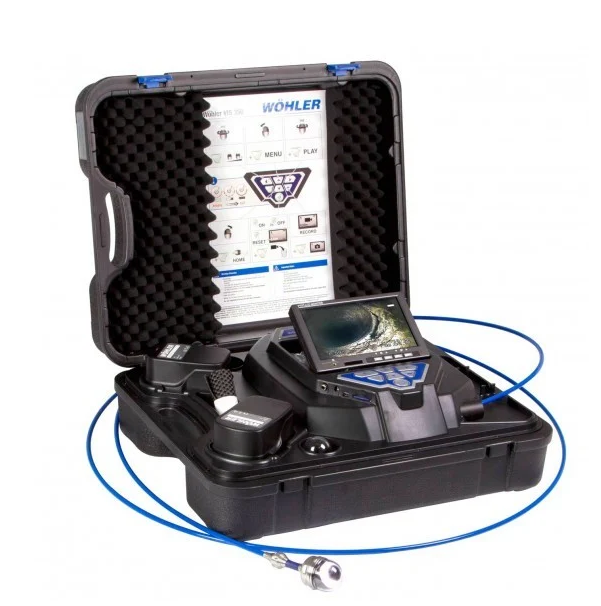

Monitor
Dimensions housing: 176 x 114 x 32 mm
TFT-display 7" / 16:9 format
Video out: RCA signal
Weight: 400 g
Power supply: Space for 2 rechargeable batteries, each 12 V or via power pack
Battery operating time: Max. 2 rechargeable batteries, each 120 mins. = 4 h (battery status in display)
Wöhler pan- and tiltable camera head Ø 40, detachable
Type: 1/3" COLOR CMOS
Pixels: 768 x 576 (PAL)
656 x 492 (NTSC)
Light sensitivity: 0,5 Lux
Lens: f = 2,3 mm, F = 2,5
Viewing angle: 130°
Light source: 12 white LEDs
Degree of protection: Waterproof to IP 67
Dimensions: Ø 40 x 60 mm
Operation temperature: 0...40 °C, RH 95 % MAX
Storage temperature: -20...50 °C, RH 95 % MAX
Transmitter frequency: 9,2 kHz
Wöhler miniature camera head Ø 26, detachable
Type: 1/3" COLOR CMOS
Resolution: 420 lines
Pixels:
768 x 576 (PAL)
656 x 492 (NTSC)
Light sensitivity: 0,5 Lux
Lens: f = 2,3 mm, F = 2,5
Viewing angle: 145°
Light source: 12 white LEDs
Degree of protection: Waterproof to IP 68
Dimensions: Ø 26 x 38 mm
Weight: 240 g
Operation temperature: 0...40 °C, RH 95 % MAX
Storage temperature: -20...50 °C, RH 95 % MAX
Transmitter frequency: 9,2 kHz
Push rod Length: 20 m
Diameter: 6,5 mm
Plastic case: Dimensions 51 x 43 x 17 cm
Weight: 8,2 kg
Distance measurement: Electronic meter counter
